Lithentic Technology 9 Volt 1.2 Amp Stepdown Isolation Transformer Terminal Blocks

Price: Not Available

Currently Unavailable

Description

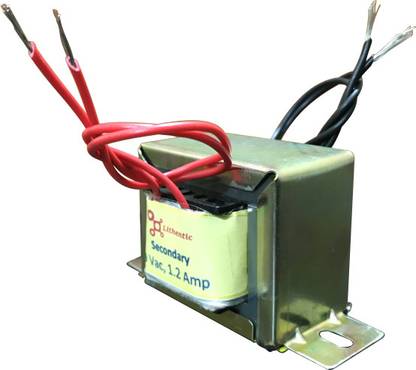

9 Volt 1.2 Amp Isolation Transformer. Single phase step down transformer. Electrically isolated single primary and single secondary winding. Double insulated copper wire winding. High quality laminated steel core. Bracket with base fixture suitable for PCB or chassis mount.

Specifications

In The Box

Sales Package

pack of 1

General

Brand	Lithentic Technology
Model Number	9 Volt 1.2 Amp Stepdown Isolation Transformer
Type	Terminal Blocks
Current	1.2 A
Wire Size	12 Cm
Voltage Range	9V
Connector Mounting	Wire Connectors
Connector Gender	Male
Material	Copper Laminated iron core
Other Features	Single phase step down transformer Output Voltage at Secondary Coil: 9Vrms Max Output Current: 1.2 Amp-rms Power Rating: 10.8 VA Input Voltage at Primary Coil: 230 Vrms Max Input Current: 60 mA Freuency: 50/60 Hz Primary Coil Resistance: 238 Ohm Secondary Coil Resistance: 2.7 Ohm
Maximum Operating Temperature	85 degC
Minimum Operating Temperature	-25 degC
Stripping Length	15 mm
Contact Termination Type	Color coded wire
Number of Contacts	4
Voltage Surge	270
Net Quantity	1
