    Lloyd 1 Ton 2 Star Split AC - White
    Share

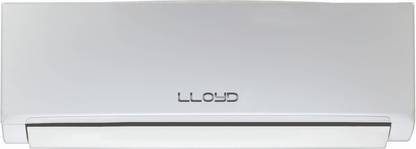

    Lloyd 1 Ton 2 Star Split AC - White  (LS13B20PC, Copper Condenser)

    Price: Not Available
    Currently Unavailable
    1 Year on Product and Condenser, 5 Years on CompressorKnow More
    Capacity
    Please select a Capacity to proceed
    Star Rating
    Please select a Star Rating to proceed
    Launch Year
    Please select a Launch Year to proceed
    Highlights
    • 1 Ton : suitable for room size up to 90 sq ft
    • 2 Star BEE Rating 2018 : For energy savings upto 5% (compared to Non-Inverter 1 Star)
    • Auto Restart: No need to manually reset the settings post power-cut
    • Copper : Energy efficient, best in class cooling with easy maintenance.
    • Sleep Mode: Auto-adjusts the temperature to ensure comfort during your sleep
    Important Note
    • For products requiring installation, returns are valid only when they are installed by Flipkart-authorized personnel.
    Description
    NA
    Read More
    Specifications
    General
    In The Box
    • 1 Indoor Unit
    • Manuals
    • Warranty Card
    • Inter Connecting Pipe
    • 1 Outdoor Unit
    • Remote
    Brand
    • Lloyd
    Model Name
    • LS13B20PC
    Type
    • Split
    Capacity in Tons
    • 1 Ton
    Star Rating
    • 2 Star BEE Rating
    BEE Rating Year
    • 2018
    Color
    • White
    Cooling Capacity
    • 3400 W
    Compressor
    • Rotary
    Dehumidification
    • Yes
    Remote Control
    • Yes
    Refrigerant
    • R-22
    Condenser Coil
    • Copper
    Dimensions
    Indoor W x H x D
    • 81.5 cm x 20.9 cm x 27 cm
    Indoor Unit Weight
    • 8.5 kg
    Outdoor W x H x D
    • 76.5 cm x 49.5 cm x 30 cm
    Outdoor Unit Weight
    • 27 kg
    Other Dimensions
    • Gross Weight: Indoor - 10.5 kg, Outdoor - 31 kg
    Performance Features
    Panel Display
    • Hidden LED
    ISEER
    • 3.38 W/W
    Body And Design Features
    Other Body and Design Features
    • 100% Inner Grooved Copper
    Air Flow & Filter Features
    Air Circulation
    • 650 CMH
    Air Flow Direction
    • 2 Way
    Anti-bacteria Filter
    • Yes
    Dust Filter
    • Yes
    Other Filter Features
    • Clean Air Filter
    Convenience Features
    Auto Restart
    • Yes
    Sleep Mode
    • Yes
    Self Diagnosis
    • Yes
    Additional Features
    • Indoor Noise: 34 dB
    Power Features
    Power Requirement
    • AC 230 V, 50 Hz
    Power Consumption
    • 1005 W
    Other Power Features
    • Input Current: 4.4 A
    Services
    Installation Details
    • Standard installation of air-conditioners upto Rs.1599 covers only:
    • 1) Drilling of holes into a brick wall for taking out the pipes
    • 2) Fixing a hole sleeve & Cap.
    • 3) Fixing & Connecting indoor and outdoor units using the standard Kit provided by the manufacturer
    • 5) Wrapping the pipe with seasoning tape
    • Not covered as part of standard Installation charges are:
    • 1) Outdoor unit stand - Rs. 750-1000.
    • 2) Extra copper wire - Rs. 600-800 per metre (Two sized copper pipes will be used)
    • 3) Drain pipe extension- Rs. 90per metre.
    • 4) Wiring extension from the meter to the installation site - Rs. 90 per metre.
    • 5) Vinyl tape roll -Rs. 90
    • 6) Dismantling/shifting of the old AC's - Rs. 600-800
    • 7) Closing the holes with White Cement - on Actuals
    • 8) Stabilizer
    • 9) Plumbing and masonry work
    • 10) Power-point/MCB fitting and any other electrical work
    • 11) Carpentry work.
    • 12) Core cutting fabrication and electrical.
    Technician Visit Details
    • Authorized Service Engineer will do the following
    • Provide replacement to the customer in case part / product not repairable (only after replacement request approved)
    • Repair Services
    • Repair/change the defective part
    Uninstallation Details
    • In case of returns
    • Uninstall
    • Pick-up the product.
    • Flipkart's team will visit the customers location
    • Pack
    Warranty
    Warranty Summary
    • 1 Year on Product and Condenser, 5 Years on Compressor
    Covered in Warranty
    • All Parts, Excluding Air Filter/ Front Grill & Plastic Parts (After Installation). The Warranty Covers Defective Materials and Workmanship From the Date of Purchase. Beyond the First Year of the Warranty Period, Only the Compressor Repair (Excluding Gas Filled Inside the Compressor) Will be Provided Free of Cost for 5 Years From Date of Purchase. Refrigerant Gas is Having Only One Year Warranty
    Not Covered in Warranty
    • Parts: Air Filter/Front Grill is Not Covered in the Warranty After Installation. The Warranty Does Not Cover Installation/Demonstration. Accessories External to the System. Damage parts. The Product is Not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification / Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises Where the Product is Kept) Conditions That Do Not Confirm to the Recommended Operating Conditions of the Machine. Defects Due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.
    Warranty Service Type
    • On-site
