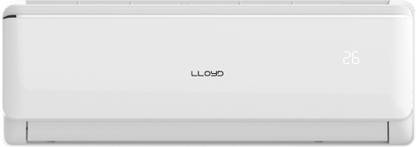

Lloyd 1 Ton 1 Star Split Smart AC with Wi-fi Connect - White (LS13A3FF-O, Copper Condenser)

Price: Not Available

Currently Unavailable

1 Year on Product and 5 Years on CompressorKnow More

Highlights

1 Ton : suitable for room size up to 90 sq ft
1 Star BEE Rating 2018
Copper : Energy efficient, best in class cooling with easy maintenance.

Important Notes

Effective 1st of Jan, 2018, BEE has enforced a downgrade of 2 stars for Fixed Speed Split ACs. For e.g., a 5-star-rated Split AC, as per BEE norms in 2017, is a 3-star from 2018 (Change Not Applicable to Inverter & Window ACs). For a given star rating, a Fixed Speed AC and an Inverter AC will have similar energy-efficiency (ISEER).
For products requiring installation, returns are valid only when they are installed by Flipkart-authorized personnel.
As a part of the "Energy Labelling Plan" of the Bureau of Energy Efficiency, the star rating of this Air Conditioner from 1st July 2022 onwards will be one star lesser than its rating on 1st Jan 2018 to 30th June 2022.

Description

Lloyd 1 Ton AC White (LS13A3FF-O, Copper)

Specifications

Body And Design Features

Other Body and Design Features

Multi Fold Evaporator, Tube Type: ODU - Inner Groove, IDU - Inner Groove

Services

Demo Details	Installation and Demo
Installation Details	Split Air-Conditioners: -Drilling holes into a brick wall to take out the pipes (excluding core cutting) -Fixing a hole sleeve & cap -Fixing & connecting indoor and outdoor units with copper pipes & installation of drainage pipes using the standard kit provided by the manufacturer -Installation of separately purchased power plug, MCB & power stabilizer -Temperature & gas pressure testing -Demo of the product Window Air-Conditioners: -Installing the AC as per the specifications/requirements -Connection to separately purchased stabilizer/power point in the range of the power cord provided by the manufacturer -Demo of the product Note: Charges are to be paid directly to the Brand/Jeeves authorized technician at the time of installation.
Technician Visit Details	Authorized Service Engineer will do the following: -Repair or change the defective part -Provide replacement to the customer in case part or product is not repairable (only after replacement request approved)
Uninstallation Details	For returns, the uninstallation process includes: - Authorized service engineer visiting the customer's location - Uninstalling the product - Packing the item - Picking up the product

Performance Features

Panel Display	Hidden LED Display
ISEER	3.15 W/W

Warranty

Warranty Summary	1 Year on Product and 5 Years on Compressor
Warranty	1 Year
Covered in Warranty	All Parts, Excluding Air Filter/ Front Grill & Plastic Parts (After Installation). The Warranty Covers Defective Materials and Workmanship From the Date of Purchase. Beyond the First Year of the Warranty Period, Only the Compressor Repair (Excluding Gas Filled Inside the Compressor) Will be Provided Free of Cost for 5 Years From Date of Purchase. Refrigerant Gas is Having Only One Year Warranty
Not Covered in Warranty	Parts: Air Filter/Front Grill is Not Covered in the Warranty After Installation. The Warranty Does Not Cover Installation/Demonstration. Accessories External to the System. Damage parts. The Product is Not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification / Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises Where the Product is Kept) Conditions That Do Not Confirm to the Recommended Operating Conditions of the Machine. Defects Due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.
Warranty Service Type	On-site

Air Flow & Filter Features

Air Circulation	630 CMH
Air Flow Direction	Smart Four Way Swing
Dust Filter	Yes

General

In The Box	1 AC Unit Remote
Brand	Lloyd
Model Name	LS13A3FF-O
Type	Split
Capacity in Tons	1 Ton
Star Rating	1 Star BEE Rating
Color	White
Cooling Capacity	3500 W
Remote Control	Yes
Refrigerant	R410A
Condenser Coil	Copper
Air Conditioner Technology	Fixed Speed
Wi-Fi Connectivity	Yes

Dimensions

Indoor W x H x D	83.7 cm x 20.5 cm x 29.5 cm
Indoor Unit Weight	10 kg
Outdoor W x H x D	72 cm x 54.5 cm x 25.5 cm
Outdoor Unit Weight	28 kg
Other Dimensions	Coil Size: ODU - 711 × 508 × 22 mm, IDU - 652 × 290 × 25.4 mm, Gross Weight: Outdoor Unit - 32 kg, Indoor Unit - 13 kg, Tube × Row Pitch × Fin Space: ODU - 25.4 × 22 × 1.3 mm, IDU - 20.5 × 25.4 × 1.3 mm

Disclaimer

The manufacturing date can be earlier than the model year.

Power Features

Power Requirement	AC 230, 50 Hz
Other Power Features	Input Current: 4.8 A

Convenience Features

Self Diagnosis	Yes
Other Convenience Features	Optional Wi-Fi
Additional Features	Feeling Function Indoor Unit Noise Level: 41 dB

Ratings & Reviews

3.8

★

4 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Waste of money!

OH AND MOST IMPORTANT THING: ONLY AFTER 1MONTH, COMPRESSOR NEED TO REPLACE...
TOOK 1 MONTH TO REPLACE.....
PLEASE DON'T BUY, Because there is no WIFI. (I only purchased because it was mentioned with Wi-Fi, AC otherwise works fine)
After eating more than 7 days for delivery, got it installed (paid 2300/- for installation - 1550 + 750 stand) and now how can I think of returning and going through whole process again... + you can NOT reach Flipkart on one to one customer phone call.... So you can...

Abhijit Bhavsar

Certified Buyer, Ahmedabad

Jul, 2018

Permalink

Report Abuse

Questions and Answers

Q:Its mobile connect

A:No

Anonymous

Certified Buyer

Report Abuse

Read other answers

Q:how many units in a day it consume?

A:If it used for a night up to 8 hrs on 25 degree it consumes near about 5 units

Anonymous

Certified Buyer

Report Abuse

Q:Is installation charge included in the cost of the AC?

A:Installation of AC is charged extra (unless specified) to customer at the time of installation and needs to be paid directly to the technician (Please check the service section for details).

OmniTechRetail

Flipkart Seller

115

Report Abuse

Q:is there no need of stabilizer???

A:yes

Balakishtareddy Kasthuri

Certified Buyer

Report Abuse

Q:Gas pipe is available or not?

A:yes its available

Anonymous

Certified Buyer

Report Abuse

Q:what is the noise level?

A:Indoor 47 dB Outdoor 54 dB

Festivals

Flipkart Seller

Report Abuse

Q:This is really 1.5 ton???

A:Yes

Anonymous

Certified Buyer

Report Abuse

Q:2023 1.5 ton 3 star model PCB warranty???

A:1 year only

Elakkiya Baskar

Certified Buyer

Report Abuse

Read other answers

Q:Is Remote and pipes and outdoor unit present in the box are not?

A:all expected accessoires were present in box

Flipkart Customer

Certified Buyer

Report Abuse

Q:It's worm or cooling both function

A:no

Anonymous

Certified Buyer

Report Abuse
