    MachEl RT-REG-4IN-100MM-ER16-M6KIT Rotary Tool
    Share

    MachEl RT-REG-4IN-100MM-ER16-M6KIT Rotary Tool  (0 mm)

    Be the first to Review this product
    ₹11,838
    ₹12,500
    5% off
    i
    Sold Out
    This item is currently out of stock
    Highlights
    • Tool Usage Type: Professional
    • Collet Diameter: 0 mm
    • Suitable For: Milling machines, Precision gear cutting and indexing tasks, Metalworking operations requiring horizontal or vertical mounting, Applications such as milling gears, splines, squares, flutes, racks, and grinders
    • Attachment Types: Can be clamped horizontally or vertically, Comes with M6 clamp kit (included), Includes ER16 collet adaptor with fixing T-nuts/bolts, Compatible with chucks, back plates, collet adaptors, and tailstocks (available separately)
    • Power Source: Cordless
    Seller
    MachineElevate
    (Not Enough Ratings)
    • 7 Days Return Policy
      ?
  • See other sellers
    • Description

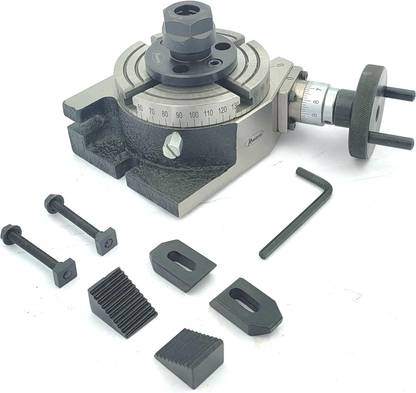

    Made of Caste Iron, Precision High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines. Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Can be clamped vertically and horizontally both ways. Height when laid horizontally 2-5/16" Inches ( 58 mm ) without the Adapter & 105 cm (with ER16 ) collet adapter mounted on it .Hand wheel is graduated in divisions of 10 min & can be set to zero. Base Dimensions : 135 mm x 105 mm with 2 x U slots (9.5 mm) . Body is painted and Rest all working surfaces are precision ground. The Dial and locking screws are plated and Handle has epoxy black finish for a rust free life. Smooth Jerk free easy rotation with negligible play. The top of the table is ground to eliminate any excess run out. Supplied with 1 Pc each of ER16 collet adaptor with fixing t nuts/ bolts along with a suitable M6 Clamp kit , which is hardened and black for rust free life. It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc. We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.
    Read More
    Specifications
    In The Box
    Sales Package
    • 4" / 100 mm Regular Rotary Table, ER16 Collet Adaptor with fixing T-nuts/bolts, M6 Clamp Kit (hardened and black-finished for rust resistance), Locking screws, Handwheel (graduated in 10 min divisions, zero-settable)
    General
    Brand
    • MachEl
    Model Number
    • RT-REG-4IN-100MM-ER16-M6KIT
    Suitable For
    • Milling machines, Precision gear cutting and indexing tasks, Metalworking operations requiring horizontal or vertical mounting, Applications such as milling gears, splines, squares, flutes, racks, and grinders
    Color
    • Black
    Material
    • Caste Iron & Tool Steel
    Attachment Types
    • Can be clamped horizontally or vertically, Comes with M6 clamp kit (included), Includes ER16 collet adaptor with fixing T-nuts/bolts, Compatible with chucks, back plates, collet adaptors, and tailstocks (available separately)
    Tool Usage Type
    • Professional
    Net Quantity
    • 1
    Dimensions
    Collet Diameter
    • 0 mm
    Important Note
    • You, the customer hereby represent and undertake that you are of legal age for purchase and use of this product. You undertake that you will use the product for domestic, and/or agricultural purposes only and in a safe and legal manner, consistent with all applicable laws, safety rules, and good common sense. Further, you represent that you will take such steps as may be reasonably necessary or required by applicable law to keep the product out of the hands of minors, untrained and/or unsound mind individuals. Flipkart shall not assume any consequences, loss, damage or injury, that may arise from the violent or illegal use, or misuse of the product sold by the independent Sellers on the Flipkart platform. It is the responsibility of the customer to handle the product with due care and its intended and legitimate use as a tool. Flipkart does not represent or warrant that the customer may legally purchase, own, or possess the product. Please check the laws and regulations outlined by Law Enforcement Agencies in your local jurisdiction before purchasing and keeping the product in possession.
    Power Features
    Power Source
    • Cordless
