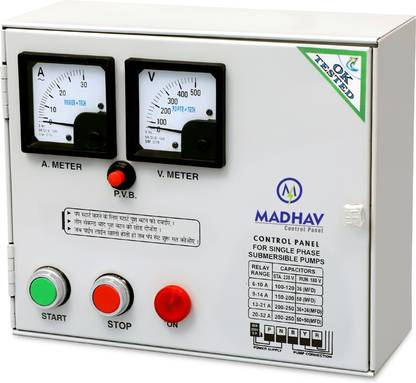

Madhav Control Panel 1.5 HP Single Phase BCH Type Submersible Pump Control Panel/Starter for Submersible Water Pump (BCH Control Panel) Submersible Water Pump  (1.5 hp)

Power Range : 1.5 HP , Overload BCH Rellay : 8 x 13 ,contactor Type: BCH, Motor Starting Capacitor: 150-200 MFD , Motor Running Capacitor: 36+36 MFD , Coil Voltage: 220-240V , 50Hz Wiring: 1.0 sq.mm to 2.5 sq. mm , Submersible Pump Starter for 1.5 HP. Pump Control Panel for Single Phase Water Filled Submersible Pumpset for start and protection from overload.Start Capacitors provided for starting torque as per Horsepower of Motor Pump. Run Capacitors provided as per Horsepower for smooth running of pumps and better life. Start Button provided which charges and discharges the start capacitor. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. ADVANTAGES Start and save of pumpset done. Motor and Supply wire directions given for easy connections. Connector terminals for easy connection Best quality product Wires (ISI) used indicating colors Red (R), Yellow (Y) and Blue (B). Every end of wire soldered / crimped by terminals to avoid sparking.Every end of wire soldered / crimped by terminals to avoid sparking.Panels provided with, Voltage reading, start button (DF01), stop buttons (DF01), Ammeter, Voltmeter etc.
