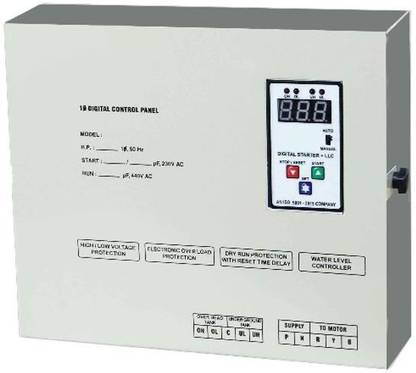

Madhav Control Panel 2 HP Digital Water Level Controller and Starter Panel with Volt and amp Meter with high Low Voltage Protection Submersible Water Pump  (2 hp)

THIS IS MODEL IS COMBINATION OF MOTOR STARTER AND WATER LEVER CONTROLLER This model is suitable to 2 HP motor this panel is also suitable for deep well motor and submersible pump. start capacitor provided for starting torque. run capacitor provided 2 No Run Capacitor : 36 + 36 MFD 1 Start Capacitor : 200/250 Input : P (Phase), N (Neutral) (sup 220 - 270 VAC) Output : R, Y, B (motor or pump connections) Micro controller based Digital Water Level Controller. Digital Volt and ampere meter are provided to see system voltage and load current accordingly. Over load Protection, High & Low Voltage protection, Current based dry run protection, Water level indications for both tank. Adjustable overload. Adjustable Dry run current. Water level controller and water level indication for overhead and underground tank. Working : This model automatically switch ON and switch OFF Motor. When water level of overhead tank becomes low means water get down from middle sensor and if water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off. AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY. This model have dry run protection so it only start motor if water present in underground tank or sump. It has current based dry running. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop motor and protect motor from dry running. No sensors require to detect dry running. Sensing element : carbon sensor, it is free from oxidation, long life. Any conducting wire can be use for sensor. Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button.
