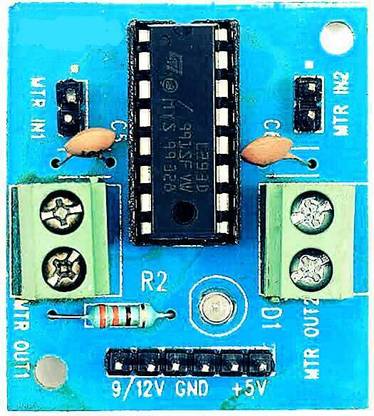

MAG BEE L293D motor driver module For Arduino -L293D motor driver board (L293D IC Board) Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
RoHS Compliant
Material: Plastic
Weight: 30

Description

Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560 is a Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC and stepping motors) and switching power transistors. To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz. Features:

Specifications

In The Box

1 X L293D Motor Driver Module

General

Brand	MAG BEE
Model Number	L293D motor driver module For Arduino -L293D motor driver board (L293D IC Board)
Skillset	Analysis & Critical Thinking, Motor Skills, Creativity & Imagination, Sensory Development, Problem Solving, Object Recognition
Type	Electronic Components
ROHS Complaint	Yes
Material	Plastic
Age Group	10-12 Years
Net Quantity	1
Key Features	Can control 2 dc motors, their direction using control lines and their speed using pwm, Compatible with aduino, raspberry pi, arm, avr, pic, 8051, etc - can provide bidirectional drive currents of up to 600-ma at voltages from 4 Key Product Features Suggest a change With terminal blocks for connecting motors and power supply and berg sticks for control signals from microcontroller

Dimensions

Width	3 cm
Height	1 cm
Weight	30

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	NA
