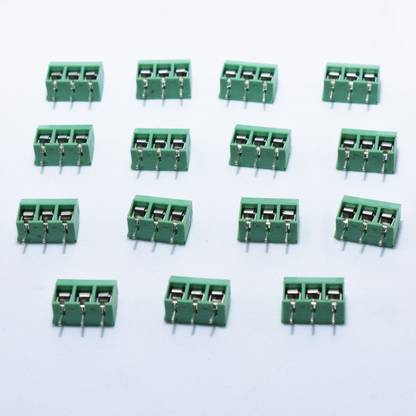

MAKER AND HACKER 20 Pcs 3 PIN PCB Mount Screw Terminal Block Connectors - Green Electronic Components Electronic Hobby Kit

20pcs 3 Pin Plug-in Screw Terminal Block Connector 5.08mm Pitch Introductions: As a kind of connector, the terminal block is an important module in the electric industry. It is convenient to connect wires. Electrical Properties: Rated voltage: 300V Rated current: 16A Contact resistance: 20m Insulation resistance: 5000M /1000V Withstanding voltage: AC1500V/1Min Mechanical Properties: Temp. Range: -30 ~+120 Max Soldering: +250 for 5 Sec Torque: 0.5Nm Specifications: Material: Screws: M2.5 steel Zinc plated Contact: phosphor bronze Ni plated or stainless steel Pin header: Brass, Tin plated Housing: PBT, UL94V-0 Pitch: 5.08mm Poles: 3P Color: Green Quantity: 20 Package included: 20 x Terminal Blocks
