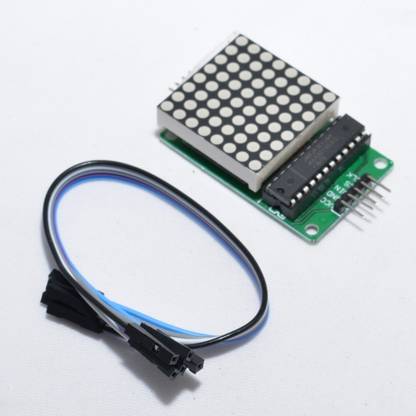

MAKER AND HACKER Max7219 Dot Led Matrix Module Mcu Control Led Display Module Display Lights Electronic Hobby Kit

MAKER AND HACKER Max7219 Dot Led Matrix Module Mcu Control Led Display Module Display Lights Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • RoHS Compliant
  • Material: Fiber Glass
  • Weight: 12
Description
Seamless splicing and so that the dot matrix can be flexible spliced . · Common cathode with bright dot matrix(8*8), display fresh and brilliant picture. · A screen roll freely, to achieve the perfect picture display · Since the master chip is used in Max7219 to- make product have the following characteristics). · The transmission efficiency of up to 10MHz. · Can be individually controlled for each point. · Lowest power consumption of 450uA (one module). · Power-on reset automatically display full black · Serial communication, a great saving of MCU IO, also can be extended To expand the program with SPI. · For each screen brightness control, by setting the Max7219 instructions. ABSOLUTE MAXIMUM RATINGS · Voltage (with respect to GND) V+: -0.3V to 6V · DIN, CLK, LOAD, CS: -0.3V to 6V Current · DIG0-DIG7 Sink Current: 500mA · SEGA-G, DP Source Current: 100mA · Continuous Power Dissipation (TA=+85°C) Narrow Plastic DIP: 0.87W · Wide SO: 0.76W · Narrow CERDIP: 1.1W · Operating Temperature Ranges(Max7219) MAX7219: 0°C to +70°C · Storage Temperature Range: -65°C to +160°C · Lead Temperature (soldering, 10sec): +300°C PIN Define · CLK: Serial-Clock Input. 10MHz maximum rate. · CS: Chip-Select Input. Serial data is loaded into the shift register while CSis low. · DIN: Serial-Data Input. Data is loaded into the internal 16-bit shift register on CLK’s rising edge · DOUT: Serial-Data Output. The data into DIN is valid at DOUT 16.5 clock cycles later. · VCC: Positive Supply Voltage. Connect to +5V. · GN:D Ground
Read More
Specifications
In The Box
  • MAX7219 LED
General
Brand
  • MAKER AND HACKER
Model Number
  • Max7219 Dot Led Matrix Module Mcu Control Led Display Module
Skillset
  • Creativity & Imagination
Type
  • Display Lights
ROHS Complaint
  • Yes
Material
  • Fiber Glass
Age Group
  • 16+ Years
Dimensions
Width
  • 60 cm
Height
  • 20 cm
Weight
  • 12
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • Needs External Power Source Source
