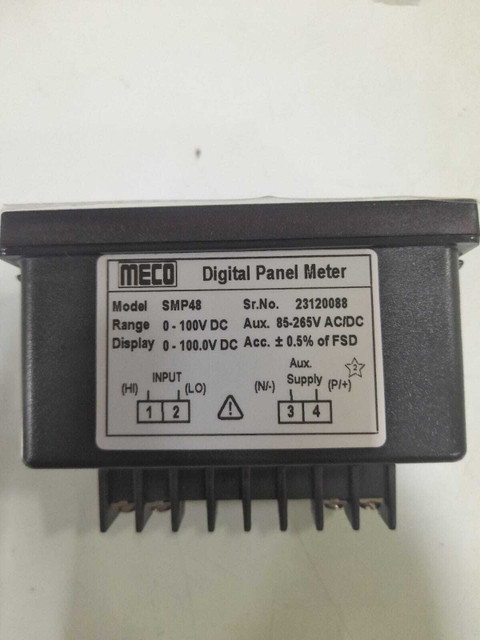

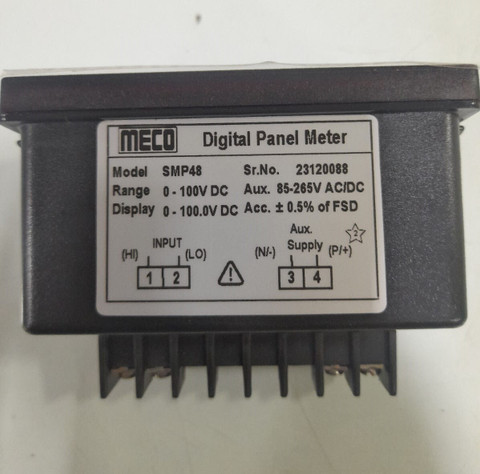

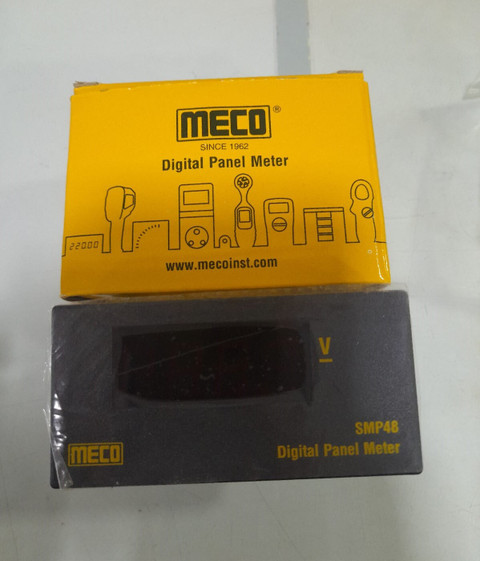

SMP 48 100VDC Digital Panel Meter Voltmeter
Meco SMP 48 100VDC Digital Panel Meter Voltmeter (Digital)
Product highlights
Sales Package
1
Brand
Meco
Model Number
SMP 48 100VDC Digital Panel Meter
Type
Digital
Maximum AC Voltage
100 V
Maximum DC Voltage
100 V
Portable
No
Key Features
Measuring Method : TRMS Using Microcontroller, Display Type : 0.56" / 14.2mm Red LED Super Bright Display, Maximum Display : 4 Digit / 9999 (Max.) Counts, Display Stability : Within ±1 Digit, Resolution : 0.001 to 1 Count Depending on Range / Scale Display, Over Range Indication : "Or ", Sampling Rate : 3 Samples / Second, Maximum Overload : Voltage : 1.2 Times Continuous, Current : 1.5 Times Continuous, Frequency Response : 40 - 400Hz, VA Burden (Typical) : Auxiliary : < 1.5VA, Voltage Input : < 1.0VA, Current Input : < 1.0VA, Environmental Conditions : 0°C to + 55°C, < 70% RH (Operation), -10°C to + 70°C, < 70% RH (Storage), 27°C ±5°C (Calibration)
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In the Box
Sales Package
1
General
Brand
Meco
Model Number
SMP 48 100VDC Digital Panel Meter
Type
Digital
Maximum AC Voltage
100 V
Maximum DC Voltage
100 V
Portable
No
Additional Features
Key Features
Measuring Method : TRMS Using Microcontroller, Display Type : 0.56" / 14.2mm Red LED Super Bright Display, Maximum Display : 4 Digit / 9999 (Max.) Counts, Display Stability : Within ±1 Digit, Resolution : 0.001 to 1 Count Depending on Range / Scale Display, Over Range Indication : "Or ", Sampling Rate : 3 Samples / Second, Maximum Overload : Voltage : 1.2 Times Continuous, Current : 1.5 Times Continuous, Frequency Response : 40 - 400Hz, VA Burden (Typical) : Auxiliary : < 1.5VA, Voltage Input : < 1.0VA, Current Input : < 1.0VA, Environmental Conditions : 0°C to + 55°C, < 70% RH (Operation), -10°C to + 70°C, < 70% RH (Storage), 27°C ±5°C (Calibration)
Dimensions
Length
18 cm
Width
15 cm
Weight
9 kg
Other Dimensions
NA
See more
High Accuracy Across the Entire Range User Programmable Display (CT Primary / PTR / Shunt Value) 9999 Count (Max) High Resolution Display Auto Selection of Decimal Point
See more
Warranty Summary
6
Generic Name
Voltmeter
Country of Origin
India
Name and address of the Manufacturer
MECO INSTRUMENTS PVT LTD
Name and address of the Packer
NAAFIE ENTERPRISES PVT LTD
