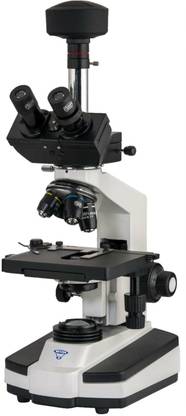

METZER-M TRINOCULAR DIGITAL RESEARCH MICROSCOPE VISION PLUS – 5000 DTM WITH CAPTURE PRO IMAGING SOFTWARE  (Multicolor)

Magnification Range 40x to 1000x. Observation Head Trinocular 45?, 360? rotatable, with interpupillary and diopter adjustment. Stand Sturdy and Durable pressure Die cast Aluminium stand. Mechanical Stage Co – axial low drive double plate mechanism system travel on ball bearing guide ways . Focusing System Co – axial coarse & fine mechanism system with ball bearing guide ways. Illumination The illuminator incorporated 3W LED lamp and has adjustable brightness. Quadruple Nose Piece A precision mechanism ensures the accuracy and optical alignment of the system. Sub stage Condenser Abbe type N.A. 1.25 with iris diaphragm for resolution and contrast control. DIN – SP Objectives 4x, 10x, 40x (SL) & 100x Oil (SL). Anti fungal & infinity corrected. Eye Pieces 10x paired. Extra wide field, Anti fungal & Anti reflected. USB Digital Camera 5..0 Megapixel Color CMOS sensor, Size 1/2“, Pixel size 3.2x3.2 micron Resolution 2048x1536, PC interface, 30 bit color depth, exposure time 1 Microsecond to 2 seconds. High Image Transmission convenient to use any standard Microscope. Digital Camera can change image into Digital signal & send it to your P.C.
