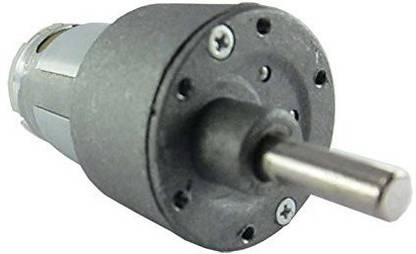

Microbot 10 RPM Johnson Geared Motor 10 RPM 10kg-cm torq 12V Dc Gear for Robotics Electronic Components Electronic Hobby Kit

The Johnson geared motor is famous for its compact size and massive torque. A torque as much as x3 as compared to center shaft or side shaft geared motor. The motor comes with a metal gearbox and off centered shaft, also shaft has a metal bushing for wear resistance. Apart from robotic application they are also used in industrial applications, vending system, hygiene and cleaning industry and household electric appliance. Specifications - rpm - 10 shaft diameter - 6mm (with internal hole) shaft length - 15 mm dimensions: Gearbox diameter - 37mm; motor diameter - 28. 5 mm; length (body only) - 63mm weight - 30 gms torque - 10 kgcm voltage - 6 to 24 (nominal voltage - 12v) no-load current = 800 ma(max), load current = 9 a(max).
