MICROTAIL Water Level Controller, 20A, Wall Mount Plastic Enclosure, 0.5mm Wired Sensor Security System
MICROTAIL Water Level Controller, 20A, Wall Mount Plastic Enclosu...more
Buy at ₹798
Apply offers for maximum savings
Buy at ₹798
Bank offers
Bank offers
₹100 off
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In the Box
Controller, Sensors, Warranty Card
General
Brand
MICROTAIL
Model Number
Water Level Controller, 20A, Wall Mount Plastic Enclosure, 0.5mm
Wired/Wireless
Wired
Number of Sensors
2
Brand Color
White
Display Type
LED
Audible Alarm
No
Installation Type
Manual
Detection Range
300 ft
Minimum Alarm Distance
1 m
Maximum Alarm Distance
100 m
Color
White
LED Indicators
Yes
Suitable For
water pumps

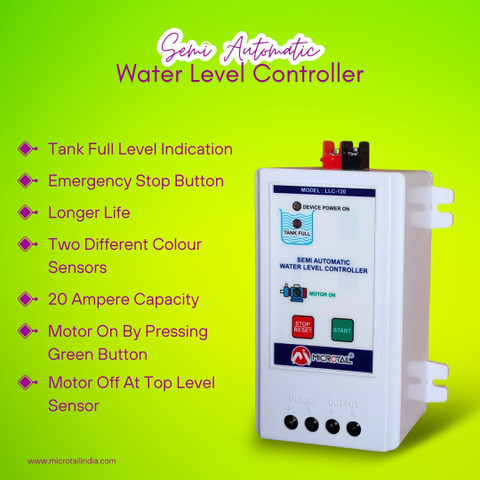

Key Features
Semi Automatic Operation: This water level controller automatically turns off the motor when the tank is full, ensuring efficient water usage., Manual Control: It also offers a manual override option, allowing you to turn the motor on or off as needed., Indicator Light: An indicator light provides a visual cue, making it easy to monitor the water level status., 20A, Wall Mount Plastic Enclosure
Additional Features
Technology Used
microcontroller based
Remote Control
No
Other Features
Motor off at top level sensor
Dimensions
Width
10 cm
Height
14 cm
Depth
15 cm
Weight
650 g
Power Features
Power Requirement
230v AC
Power Consumption
As per pump rating
Battery Type
not included
Other Power Features
Two different colour sensor
See more

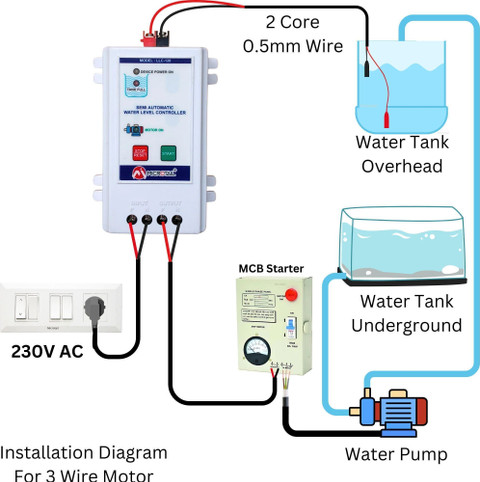

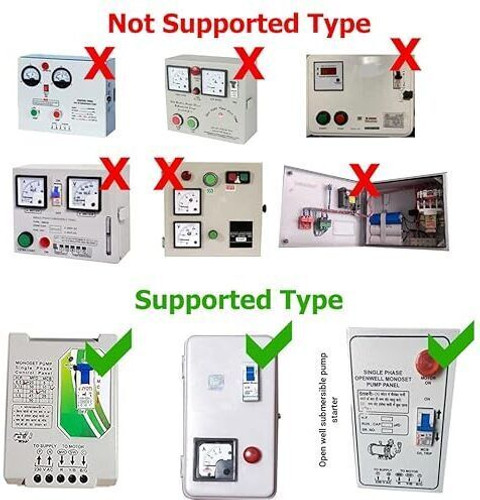

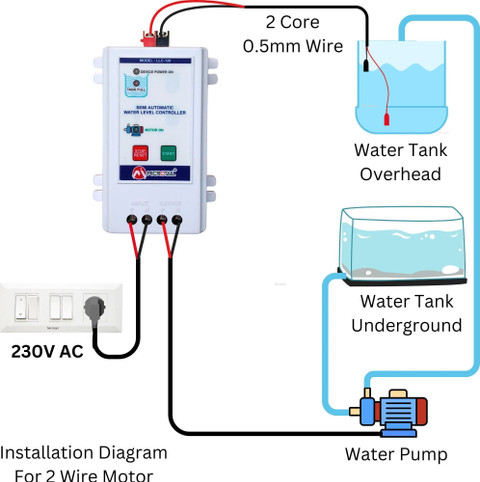

Item Specifications : Condition : A brand new unused, undamaged microtail brand item that is fully operational and functions as intended. Warranty Service : Repair or Replacement. Customer has to send controller back to company. One side courier charge on customer. Sensor not covered under warranty. Burn out and damage not covered under warranty. Package Contain : 1 Water Level Controller Unit. 2 Sensors. 1 pack, mounting screw. 1 user manual with technical details. Warranty Card Product Descriptions : Working : This controller will start the motor by pressing start button of the controller and it will automatically switch OFF Motor, when the tank is full. User can press start button at any time they want. Suitable for 0.1 HP to 3.0 HP Motor. Supply Voltage : 220-270 VAC. It can be connected with or without starter. This model suitable for any single phase Starter panel see diagram above for connection. Power ON & OFF LED indication provided. Motor ON & OFF indication provided. Tank Full indication provided. high quality ABS enclosure. compact size.
See more
Warranty Summary
For warranty process customer should send product back to our company via any courier service. One side courier charge will be applicable on customer only.
Covered in Warranty
Malfunctioning or Not Controlling
Not Covered in Warranty
Power burn out or OutPut side Damage or Body damage
Warranty Service Type
For warranty process customer should send product back to our company via any courier service. One side courier charge will be applicable on customer only.
Generic Name
Sensor Security System
Country of Origin
India
Name and address of the Manufacturer
Xcellent Microtech
Name and address of the Packer
Xcellent Microtech
