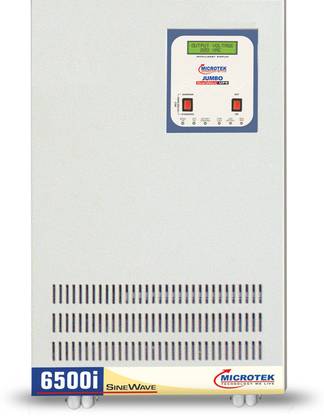

Microtek Hi-GRADE JUMBO 5.5KVA/4400W UPS JM SW 6500i/96V Pure Sine Wave Inverter

Microtek Hi-GRADE JUMBO 5.5KVA/4400W UPS JM SW 6500i/96V Pure Sine Wave Inverter

Price: Not Available
Currently Unavailable
Warranty
2-years warranty against the manufacturing defects
Highlights
  • Backup Time: 8 hrs
  • Battery Capacity: 12V Under 200AH
Description
Microtek UPS JM SW 6500i is Hi-Grade IGBT Based Jumbo UPS Model with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance. It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and LCD Display. It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging.
Read More
Specifications
In The Box
  • Unit, User Manual and Warranty Card
General
Brand
  • Microtek
Model Number
  • Hi-GRADE JUMBO 5.5KVA/4400W
Battery Included
  • No
Back Up Time
  • 8 hrs
Load Options
  • 4400W
Type
  • Pure Sine Wave Inverter
Model Name
  • UPS JM SW 6500i/96V
Mode Type
  • Automatic Inverter
Material
  • Metal
Technology Used
  • Intelli Pure Sinewave Technology
Solar Power Compatible
  • No
Output Features
Efficiency
  • >80 %
Output Voltage
  • 100V ~ 280V
Output Frequency
  • 220V + 10%
Overload
  • 105%~125%(4 Times Auto Reset) / 300%
AC Output Types
  • AC Output
Output Power
  • 4400 W
Input Features
Input Voltage
  • 100V ~ 280V
Input Frequency
  • 220V + 10%
Battery Features
Battery Type
  • Tall-Tubular / Flat-Plate Batteries / (IOOAH-180AH)**
Number of Batteries
  • 8
Battery Voltage
  • 12V Each
Battery Capacity
  • 12V Under 200AH
Battery Charging Current
  • 16A(± 2A) Default. Settable down to 5A via Resistor Change on Control Board
Environmental Features
Operating Temperature
  • 0 to 45 Degree Celsius
Convenience Features
Emergency Power Off
  • Yes
Display Type
  • LED & LCD Display Indications.
Protection Against
  • Low Battery Voltage, Battery Overcharge, Overload, Over Temperature, Shot Circuit
Cooling System
  • Fan and Heat Sink
Dimensions
Width
  • 60 cm
Height
  • 66.5 cm
Depth
  • 66.5 cm
Weight
  • 92.31 kg
Warranty
Warranty Summary
  • 2-years warranty against the manufacturing defects
Service Type
  • For any Product or warranty related issues kindly call us7283838383or drop a mai toho@microtekdirect.com
Covered in Warranty
  • Manufacturing defects
Not Covered in Warranty
  • physical damage
