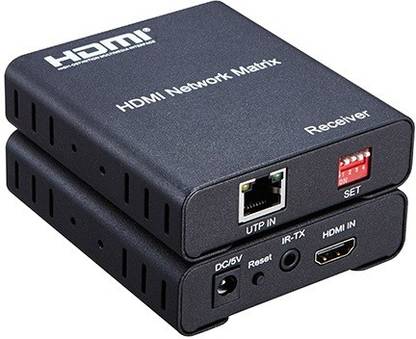

microware 1080P HDMI Extender 120 m RJ45 over TCP IP Cat5e 6 Ethernet Transmitter and Receiver with 2 4K HDMI Cable Media Streaming Device  (Black)

1.Introduction 120m HDMI Matrix Extender over IP is a device based on the standard TCP/IP protocol for transmitting HD audio and video source over LAN . It transmits your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point, multipoint-to-multipoint and cascade connection mode. 2.Features & Specifications Support HDMI1.3/HDCP1.1&1.2 Support point-to-point mode, multipoint-to-multipoint mode and cascade connection mode. Standard 802.3 Ethernet Support one way IR extension. Pure hardware design, plug and play, do not need to install additional software HDTV Resolutions 480p,720p,1080p Audio Sample rate:32kHz,44.1kHz,48kHz IR remote control 38kHz;NEC HDMI HDMI 1.3 HDCP HDCP 1.2 Power adapter DC5V/1A Power consumption HDMI Sender:3W HDMI receiver:3W Size(L-W-H) 92x79x28mm Weight 240g x 2 3.Package Contents Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: 1) one piece of HDMI transmitter 2) one piece of HDMI receiver 3) Two pieces of DC 5V power supply 4) One pair of IR transmitter and receiver 5) User’s Manual 4.Physical interface diagram
