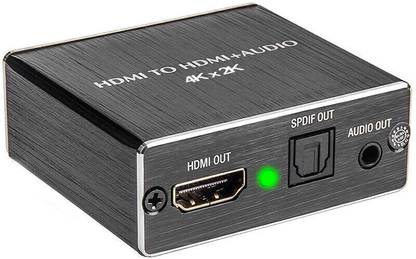

microware Audio Extractor Converter Audio Splitter With Usb Cable Media Streaming Device  (Black)

Features : * Convert 1 HD Input to 1 HD + 1 Audio ( SPDIF ) Output + 3.5mm Analog Audio Output * This 4K x 2K HD audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HD source. * HD to achieve the synchronization of audio signal separation . There are PASS/2.0CH /5.1CH three kinds of audio mode options * Input Resolution: Up to 3840x2160 @ 30Hz : 4096x2160@30Hz. LED clearly indicate the working state of the Extractor. * It can extract the digital audio signal embedded in HD source and convert it through 3.5mm analog audio output and SPDIF output at the same time. Three switing audio EDID settings: Pass: HD pass mode. The audio and video can be convertered from the HD output. SPDIF and L/R will not output any sound. 2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HD input and the HD/ SPDIF and L/R output stereo audio. 5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HD/ SPDIF. Specifications: Input Port: 1 x HD IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH) Output Port: 1 x HD OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack HD resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i Support video color format: 24bit/deep color 30bit,36bit Max bandwidth: 225MHz Max baud rate: 6.75Gbps Max working current: 190mA Item size: 5.8 * 5.3 * 2.3cm / 2.3 * 2.1 * 0.91in(L * W * H) Item weight: Approx. 59g / 2.1oz Package size: 14 * 9.5 * 2.5cm / 5.5 * 3.7 * 0.98in(L * W * H) Package weight: 97g / 3.4oz
