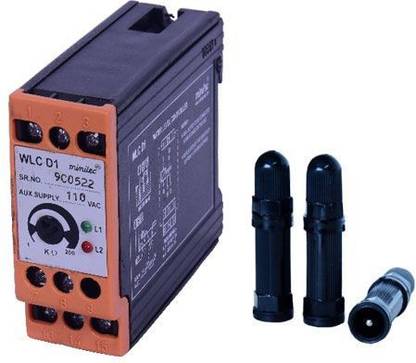

MINILEC Water Level ControllerWLC D1-240V AC Multipurpose Controller

Get notified when this item comes back in stock.

Home

Automation & Robotics

multipurpose_controller

MINILEC multipurpose_controller

MINILEC Water Level ControllerWLC D1-240V AC Multipurpose Controller

3.7

6 Ratings & 1 Reviews

Special price

₹1,691

₹2,629

35% off

Sold Out

This item is currently out of stock

Seller

SKRINDUSTRISES

7 Days Return Policy
?

See other sellers

Description

Auxilliary Supply Auxilliary Supply24 VAC/DC/100-120/220-240/380-440 V AC ± 10%, 50 / 60 Hz Output Contacts Output Contacts1 CO Input Sensors Input Sensors3 Electrodes Sensitivity Sensitivity1K? - 200 K? (adjustable) Trip Time Delay Trip Time DelayLess than 1 sec Weight Unit300 gms. Sensor (each)50 gms. Dimensions (mm)Unit Overall (L x W x D)76 x 30.5 x 117.5 Mounting (L x W)68 mm centre to centre / 35 mm rail mounting Sensor (mm) Overall24 (Dia) x 76 (L) Note: Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)

Specifications

In The Box

Sales Package

1 Water level controller,3 Sensor & Manual

General

Brand	MINILEC
Model Number	Water Level ControllerWLC D1-240V AC
Type	Wired
Power Source	240V Ac
Material	Plastic
Color	Mullti Color
Bluetooth Enabled	No
Wifi Enabled	No
Compatible Devices	Garment Machineries Textile Machineries Booster Pump Control Panels Water Distribution Pumps House Boilers Suitability for Water Cooled Machines Submersible Pump Control Panel Heat Exchanger Package Boiler in Sugar Factory Soda Machine Steam Generators Captive Power Plant
Range	100
Key Features	Single tank - 2 level control relay, Suitable for conductive liquids, Sensitivity adjustment, Also can be used as moisture controls relay., 1CO output relay.

Additional Features

Other Features

Garment Machineries Textile Machineries Booster Pump Control Panels Water Distribution Pumps House Boilers Suitability for Water Cooled Machines Submersible Pump Control Panel Heat Exchanger Package Boiler in Sugar Factory Soda Machine Steam Generators Captive Power Plant

Dimensions

Width	3 cm
Height	12 cm
Depth	3 cm
Other Dimensions	Overall (L x W x D)76 x 30.5 x 117.5 Mounting (L x W)68 mm centre to centre / 35 mm rail mounting
