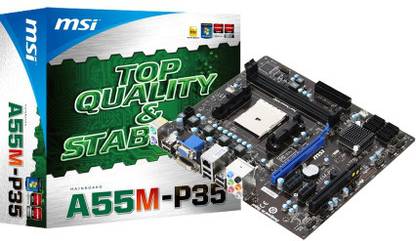

    MSI A55M-P35 FM1Socket Micro-ATX AMD A55 Chipset DDR3 Motherboard

    MSI A55M-P35 FM1Socket Micro-ATX AMD A55 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Please Call 1800 103 6262 (Toll Free) Monday to Friday (10 AM to 5 PM)Know More
    Highlights
    • AMD A55
    • Data Rate DDR3
    • Maximum RAM Capacity 16
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 6
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 6
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    In The Box
    Sales Package
    • Motherboard, SATA Cables, Rear I/O Panel Shield and Supporting CD Software
    General Features
    Overclocking
    • OC Genie II - Auto Overclocking to Boost Performance in 1 Second
    Support CDs
    • MSI Live Update 5, BIOS, Driver, VGA, Utility Update
    OS Support
    • Windows XP, Windows Vista, Windows 7
    BIOS
    • ClickBIOS: Easy-to-use UEFI BIOS Interface
    Features
    • VGA Max Share Memory 1024 MB, DirectX 11, 6 Mounting Holes
    Advanced Technologies
    • AMD Cool'n'Quiet Technology
    Advanced Features
    • Winki 3, USB Safeguard, M-Flash, i-Charger: Fast Charge iPad/ iPhone/ Smartphone
    Warranty
    Domestic Term
    • 3 Years MSI India Warranty and Free Transit Insurance.
    Warranty Summary
    • Please Call 1800 103 6262 (Toll Free) Monday to Friday (10 AM to 5 PM)
    Covered in Warranty
    • Manufacturing Defects
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 16 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1866 MHz, 1333 MHz, 1600 MHz
    Buffered Memory
    • Unbuffered
    Dimensions
    Dimensions
    • 215 x 244 mm
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • FM1
    Compatible Processors
    • AMD Athlon II X4, AMD Sempron, AMD A-Series, AMD Athlon II X2, AMD E-Series
    Chipset
    • AMD A55
    Chipset Manufacturer
    • AMD
    Graphics
    Integrated Graphics card
    • Yes
    External Graphics Card Support
    • Yes
    Multi GPU Support
    • Yes, AMD Dual Graphics, Hybrid CrossFire
    Storage
    SATA 3 Gb/s
    • AMD A55 Chipset
    RAID Controller
    • AMD A55 Chipset
    RAID Configurations
    • 0, 1, 10
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2, 2
    PCIe x16 Slots, Generation
    • 1, 2
    General
    Brand
    • MSI
    Model ID
    • A55M-P35
    Key Features
    • Micro-ATX Form Factor, AMD A55 Chipset, 2 Memory Slots, Maximum 16 GB DDR3, Dual Channel DIMM Memory, FM1 Socket Type, RAID Controller: AMD A55
    Connectivity
    Ethernet Controller
    • Realtek 8111E
    Ethernet Features
    • 10/100/1000 Mbits/sec
    Audio
    Audio Codec
    • Realtek ALC887
    Audio Channels
    • 8
    Audio Features
    • Flexible Audio Channel with Jack Sensing, Compliant with Azalia 1.0 Spec
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 6
    USB 2.0 Headers
    • 2
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x ATX 4-pin 12V CPU Power Connector, 1 x Serial Port Connector, 1 x Clear CMOS Jumper, 1 x SPDIF-out Connector, 1 x Chassis Intrusion Connector, 1 x Parallel Port Connector
