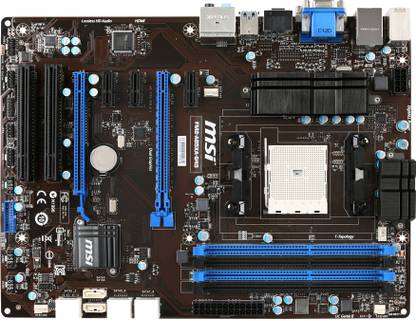

MSI FM2-A85XA-G43 Motherboard

Price: Not Available

Currently Unavailable

3 Years Domestic WarrantyKnow More

Highlights

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

In The Box

Sales Package

General Features

Overclocking	OC Genie II
Bundled Software	Live Update 5
OS Support	Windows: XP, 8, Vista, 7
Features	DigitALL Power, M-Flash, USB Safeguard, HDMI v1.4, All Solid Capacitors, Winki 3, Mounting Holes: 6, DirectX - DX11, Super Charger
Advanced Technologies	AMD Dual Graphics Technology

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Warranty

Memory

Limitations

The Maximum 64 GB of System Memory can be Reached while Using 16 GB (or Above) Memory Modules, We will Update the Memory Test Report on the Website when the New Memory Modules are Available on the Market, Due to the Limitation of 32-bit Windows Operating System, When more than 4 GB Memory Installed, The Actual Size can be Used will be Less than that, This Motherboard Supports Dual-display Function by Two Onboard Graphics Output Ports (HDMI+VGA, HDMI+DVI-D, VGA+DVI-D), This Motherboard also Supports Triple-Display Function by Three Onboard Graphics Output Ports (HDMI+VGA+DVI-D)

Dimensions

Essentials

Form Factor	ATX
Socket Type	FM2
Compatible Processors	AMD A4 Processor, AMD Athlon X4 Processor, AMD A6 Processor, AMD A10 Processor, AMD A8 Processor, AMD Athlon X2 Processor
Chipset	AMD A85X
Chipset Manufacturer	AMD

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, Hybrid CrossFire Technology

Storage

Expansion Slots

General

Brand	MSI
Model ID	FM2-A85XA-G43
Key Features	ATX Form Factor, FM2 Socket Type, 4 Memory Slots, Maximum 64 GB DDR3, AMD A85X Chipset, Dual Channel DIMM Memory, 1 HDMI Port

Connectivity

Ethernet Controller	Realtek RTL8111E
Ethernet Features	PCIE Gigabit LAN 10/100/1000 Mb/s, Compliance with PCI-Express Bus Specification v1.0a

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	Flexible Audio with Jack Sensing, Compliant with Azalia 1.0 Spec

Internal I/o Headers

SATA 6 Gb/s Headers	8
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 4 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Clear CMOS Jumper, 1 x Serial Port Connector, 1 x Chassis Intrusion Connector
