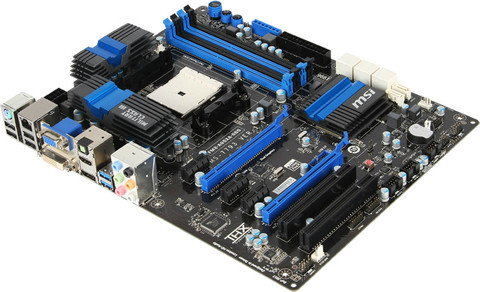

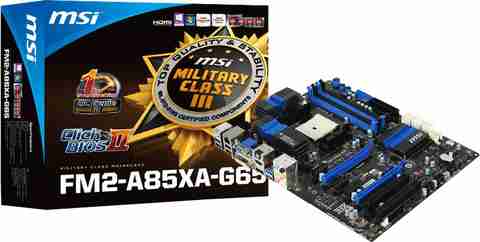

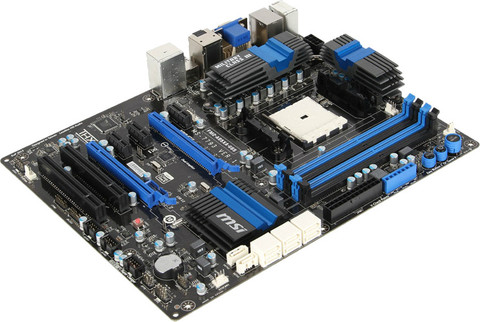

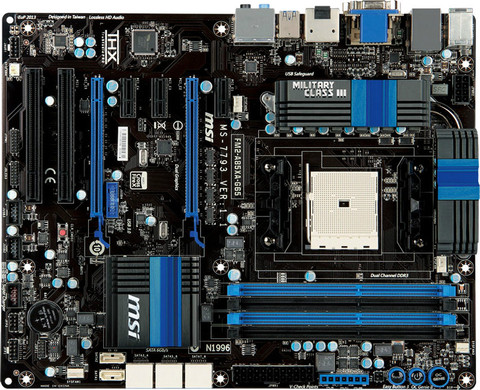

MSI FM2-A85XA-G65 FM2Socket ATX AMD A85X Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Please Contact 011-40525645 or Mail Us: support@amigointernational.biz in Case of ProblemsKnow More

Highlights

AMD A85X
Data Rate DDR3
Maximum RAM Capacity 64
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports), 1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	OC Genie II Technology Provides Overclocking in 1 Sec
Support CDs	MSI Live Update 5, BIOS, Driver, VGA, Utility Update
OS Support	Windows XP, Windows Vista, Windows 7
BIOS	Click BIOS II: Easy-to-use UEFI BIOS Interface
Advanced Technologies	Live Update 5, Winki 3, AMD's Cool 'n' Quiet Technology, Super Charger
Advanced Features	M-Flash, Military Class III Components, USB Safeguard Feature

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	Please Contact 011-40525645 or Mail Us: support@amigointernational.biz in Case of Problems
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	4 Slots
Memory Configuration	64 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz, 2400(O.C) MHz
Buffered Memory	Unbuffered

Dimensions

245 x 305 mm

Essentials

Form Factor	ATX
Socket Type	FM2
Compatible Processors	AMD A10-5700, AMD A6-5400B, AMD A6-5400K, AMD A8-5500, AMD A4-5300, AMD A4-5300B, AMD A8-5600K, AMD A10-5800K, AMD AthlonX4 730, AMD AthlonX4 740, AMD AthlonX4 750K
Chipset	AMD A85X
Chipset Manufacturer	AMD

Graphics

Multi GPU Support

Yes, AMD CrossFireX

Storage

SATA 6 Gb/s	AMD A85X
RAID Controller	AMD A85X
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	3, 2
PCIe x16 Slots, Generation	2, 2

General

Brand	MSI
Model ID	FM2-A85XA-G65
Key Features	1 HDMI Port, Maximum 64 GB DDR3, ATX Form Factor, FM2 Socket Type, AMD A85X, 4 Memory Slots, Dual Channel DIMM Memory

Connectivity

Ethernet Controller	Realtek RTL8111E
Ethernet Features	10/100/1000 Mb/s

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	Jack Sensing, Compliant with Azalia 1.0 Spec

Internal I/o Headers

SATA 6 Gb/s Headers	8
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 4 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Reset Button, 1 x Clear CMOS Jumper, 1 x Chassis Intrusion Connector, 1 x MultiConnect Panel Connector, 1 x OC Genie Button, 1 x Clear CMOS Button, 1 x Voltage Checkpoints Connector, 1 x Power Button

Ratings & Reviews

★

7 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Spacious Military class Board, Worth Price

Really I did a lot of online research before purchasing an FM2 board for AMD A10-5800K Trinity processor..
First I thought of buying ASUS FM2 board, but after reading several reviews, I have opted MSI.

I built a mid range gaming rig for 1 Lakh, and the quality of components on board are really good, the OC buttons, Reset power seperate on board buttons are really usefull..

Pros:
GUI based BIOS, mouse enabled.
Bootable Device options.
Windows 8 basic settings.
One click overclocking.
Mother...

Arunbluebrain

Certified Buyer

Jan, 2013
