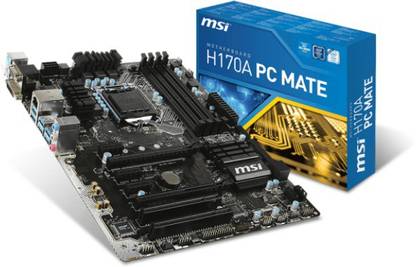

MSI H170A PC MATE LGA1151Socket ATX Intel H170 Chipset DDR4 Motherboard for Desktop
Freedom Sale starts in16 hrs : 57 mins : 05 secs

MSI H170A PC MATE LGA1151Socket ATX Intel H170 Chipset DDR4 Motherboard for Desktop

Price: Not Available
Currently Unavailable
3 years limited warrantyKnow More
Highlights
  • Suitable For Desktop
  • Intel H170
  • Data Rate DDR4
  • Maximum RAM Capacity 64 GB
  • Form Factor: ATX
Description
UNMATCHED MEMORY PERFORMANCE AND STABILITY DDR4 Boost With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability. This next generation UEFI BIOS is completely rebuilt and features a plethora of system builders’ favorite options. From M-Flash for easy BIOS flashing to advanced data protection & system security, CLICK BIOS hands you the tools to fully protect and optimize the system. Through smart design and optimizations for Windows 10, CLICK BIOS is faster than ever. By reducing the use of graphics in the UEFI shell, it boots faster, reacts faster and adds a smooth experience when changing settings. Smart categorizing of functions and settings make this the easiest BIOS you’ll ever see. Next gen UEFI BIOS Perfect for system builders Easy to use Windows 10 optimized Packed with security featuresThis next generation UEFI BIOS is completely rebuilt and features a plethora of system builders’ favorite options. From M-Flash for easy BIOS flashing to advanced data protection & system security, CLICK BIOS hands you the tools to fully protect and optimize the system. Through smart design and optimizations for Windows 10, CLICK BIOS is faster than ever. By reducing the use of graphics in the UEFI shell, it boots faster, reacts faster and adds a smooth experience when changing settings. Smart categorizing of functions and settings make this the easiest BIOS you’ll ever see. Next gen UEFI BIOS Perfect for system builders Easy to use Windows 10 optimized Packed with security features
Read More
Specifications
In The Box
Sales Package
  • Motherboard, User Manual
General
Brand
  • MSI
Model ID
  • H170A PC MATE
Essentials
Form Factor
  • ATX
Socket Type
  • LGA1151
Chipset
  • Intel H170
Chipset Manufacturer
  • Intel
Memory
Number of Memory Slots
  • 4 Slots
Memory Configuration
  • 64 GB DDR4 Dual Channel DIMM
Memory Frequency
  • 2133 MHz
ECC Support
  • ECC
Buffered Memory
  • No
Storage
RAID Controller
  • Intel® H170 Chipset
Graphics
Integrated Graphics card
  • Only with iGPU-ready CPU
Audio
Audio Codec
  • 1 x Realtek RTL8111H Gigabit LAN controller
Audio Channels
  • 7.1
Audio Features
  • Realtek® ALC887 Codec, 7.1-Channel High Definition Audio
Connectivity
Wireless and Bluetooth
  • x Realtek RTL8111H Gigabit LAN controller
Internal I/o Headers
Other Connectors
  • - 1 x PS/2 mouse port - 1 x PS/2 keyboard port - 1 x VGA port - 1 x DVI-D port - 1 x HDMI™ port - 1 x LAN (RJ45) port - 4 x USB 3.1 Gen1 ports - 2 x USB 3.1 Gen2 ports - 3 x audio jacks, - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors (2 ports reserved for SATA Express port) - 1 x SATAe connector - 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) - 2 x 4-pin CPU fan connectors - 3 x 4-pin system fan connectors - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Parallel port connector - 1 x Clear CMOS jumper
Back Panel Ports
HDMI Ports
  • 1
Warranty
Warranty Summary
  • 3 years limited warranty
Covered in Warranty
  • Warranty of the product is limited to manufacturing defects only
Not Covered in Warranty
  • Warranty does not cover any physical damage
Warranty Service Type
  • Carry In Warranty
