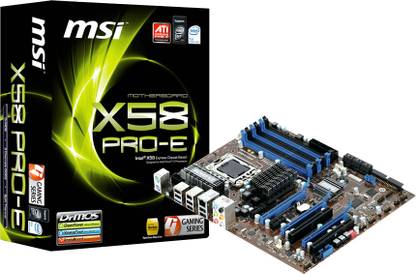

MSI X58 PRO-E LGA 1366Socket ATX Intel X58 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Please Call 1800 103 6262 (Toll Free) Mon to Fri (10 AM to 5 PM)Know More

Highlights

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	6
eSATA Ports, Controller	1, JMicron 363
IEEE 1394a Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	2

In The Box

Sales Package

User's Manual, Rear I/O Panel Shield, SATA Power Cable, Power Cable, M-connector, IDE/PATA Cable, SLI Bridge, USB Bracket and Support CD

General Features

Support CDs	Live Update 5, BIOS, Driver, VGA, Utility Update
OS Support	Windows XP and Above
BIOS	Mainboard BIOS Provides Plug and Play BIOS, Mainboard Provides a Desktop Management Interface(DMI) Function
Features	9 Mounting Holes, True Blu-ray Audio Support, FSB: 64GT/s, 3-way SLI Support, New BIOS Feature M-Flash, BIOS-level Power Saving Design
Advanced Technologies	Live Update 5, Super Charger, Active Phase Switching(APS), MSI 3TB+ Infinity Technology
Advanced Features	Loseless 24-bit/192 KHz HD Audio, DrMOS, M-Flash, All Solid Capacitors, Easy OC Switch, All Shielded Choke, M-connectors

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	Please Call 1800 103 6262 (Toll Free) Mon to Fri (10 AM to 5 PM)
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Dimensions

Essentials

Form Factor	ATX
Socket Type	LGA 1366
Compatible Processors	Intel Core i7 Processor, Intel Xeon
Chipset	Intel X58, Intel ICH10R
Chipset Manufacturer	Intel

Graphics

Multi GPU Support

Storage

Expansion Slots

General

Brand	MSI
Model ID	X58 PRO-E
Key Features	ATX Form Factor, Intel X58 Chipset, 6 Memory Slots, Maximum 24 GB DDR3, Triple Channel DIMM Memory, 7 SATA 3Gb/s Headers with Intel ICH10R/JMicron 363 Chipset, LGA 1366 Socket Type, Intel ICH10R Chipset

Connectivity

Audio

Audio Codec	Realtek ALC889
Audio Channels	8
Audio Features	High Definition Audio, Jack Sensing, Compliant with Azalia 1.0 Spec, Meet Microsoft Vista Premium Spec

Internal I/o Headers

SATA 3 Gb/s Headers	7
USB 2.0 Headers	3
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	2
Other Connectors	CD-in Connector, 1 x ATA133 Connector, 1 x Reset Button, 1 x Clear CMOS Button, 1 x Chasis Intrusion Connector, 1 x Serial Port Pinheader, 1 x Power Button, 1 x SPDIF-out Connector
