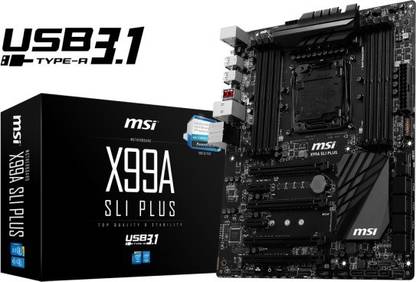

MSI X99A SLI PLUS LGA 2011-v3Socket ATX Intel X99 Chipset DDR4 Motherboard for Desktop

MSI X99A SLI PLUS LGA 2011-v3Socket ATX Intel X99 Chipset DDR4 Motherboard for Desktop

Price: Not Available
Currently Unavailable
3 years limited manufactutring warrantyKnow More
Highlights
  • Suitable For Desktop
  • Intel X99
  • Data Rate DDR4
  • Maximum RAM Capacity 64 GB
  • Form Factor: ATX
Description
IntelĀ® X99 Express Chipset::10 x SATA 6Gb/s ports (2 x ports compatible with 1 x SATA Express port)*::SATA7~10 ports only support IDE mode and AHCI mode.::Supports IntelĀ® Smart Response Technology (Windows 7/ 8/ 8.1)::1 x SATA Express port*::1 x M.2 port, supports M.2 SATA 6Gb/s module* or M.2 PCIe module up to 32Gb/s speed** ::M.2 port supports 4.2cm/ 6cm/ 8cm length module::M.2 PCIe module does not support RAID 0, RAID1, RAID 5 and RAID 10.::The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port.::Intel RST does not support PCIe M.2 SSD with Legacy ROM.
Read More
Specifications
In The Box
Sales Package
  • Motherboard
General
Brand
  • MSI
Model ID
  • X99A SLI PLUS
Essentials
Form Factor
  • ATX
Socket Type
  • LGA 2011-v3
Chipset
  • Intel X99
Chipset Manufacturer
  • Intel
Memory
Memory Configuration
  • 64 GB DDR4 Quad channel DIMM
ECC Support
  • Non-ECC
Graphics
Integrated Graphics card
  • dependent on installed cpu
Audio
Audio Codec
  • RealtekĀ® ALC892 Codec
Audio Channels
  • 7.1
Audio Features
  • RealtekĀ® ALC892 Codec, 7.1-Channel High Definition Audio
Connectivity
Wireless and Bluetooth
  • 1 x Intel I218 Gigabit LAN
Internal I/o Headers
Other Connectors
  • 1 x 24-pin AT x main power connector, 1 x 8-pin AT x 12V power connector, 10 x SATA 6Gb/s connectors, 1 x SATA E xpress connector, 1 x M.2 connector, 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports), 2 x 4-pin CPU fan connectors, 3 x 4-pin system fan connectors, 1 x Front panel audio connector, 2 x System panel connectors, 1 x TPM module connector, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x Slow mode booting jumper, 1 x Power button, 1 x Reset button, 1 x OC Genie button, 1 x Multi-BIOS switch
Back Panel Ports
USB 2.0 Ports, Controller
  • 6
Warranty
Warranty Summary
  • 3 years limited manufactutring warranty
Covered in Warranty
  • Warranty of the product is limited to manufacturing defects only
Not Covered in Warranty
  • Warranty does not cover any physical damage
Warranty Service Type
  • Carry In Warranty
