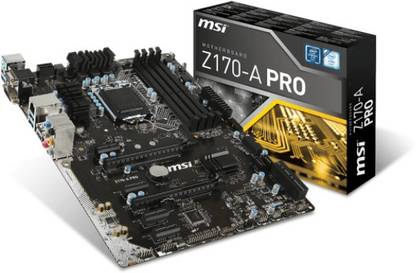

MSI Z170A Pro LGA1151Socket ATX Intel Z170 Chipset DDR4 Motherboard for Desktop

MSI Z170A Pro LGA1151Socket ATX Intel Z170 Chipset DDR4 Motherboard for Desktop

Price: Not Available
Currently Unavailable
3 Years WarrantyKnow More
Highlights
  • Suitable For Desktop
  • Intel Z170
  • Data Rate DDR4
  • Maximum RAM Capacity 64 GB
  • Form Factor: ATX
Description
MAKING YOUR LIFE EASIER IS OUR BUSINESS The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards. UNMATCHED MEMORY PERFORMANCE AND STABILITY DDR4 Boost With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
Read More
Specifications
In The Box
Sales Package
  • Motherboard
General
Brand
  • MSI
Model ID
  • Z170A Pro
Essentials
Form Factor
  • ATX
Socket Type
  • LGA1151
Chipset
  • Intel Z170
Chipset Manufacturer
  • Intel
Memory
Memory Configuration
  • 64 GB DDR4 Dual Channel DIMM
ECC Support
  • Non-ECC
Buffered Memory
  • No
Graphics
Integrated Graphics card
  • Dependent on installed CPU
Audio
Audio Codec
  • Realtek® ALC892 Codec
Audio Channels
  • 7.1
Internal I/o Headers
SATA 6 Gb/s Headers
  • 6
USB 2.0 Headers
  • 2
Other Connectors
  • 1 x PS/2 keyboard/ mouse port - 1 x VGA port - 1 x DVI-D port - 1 x DisplayPort - 1 x LAN (RJ45) port - 4 x USB 3.1 Gen1 ports - 2 x USB 2.0 ports - 6 x audio jacks, 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 2 x SATAe connector - 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) - 2 x USB 3.1 Gen1 connector (supports additional 4 USB 3.1 Gen1 ports) - 2 x 4-pin CPU fan connectors - 3 x 3-pin system fan connectors - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Parallel port connector - 1 x Clear CMOS jumper
VGA/Dsub Connectors
  • 1
Back Panel Ports
USB 2.0 Ports, Controller
  • 2
DVI Ports
  • 1
Audio I/O Channels
  • 6
General Features
BIOS
  • Click BIOS 5:Award-winning brand new Click BIOS 5 with high resolution scalable font
Advanced Features
  • OC GENIE 4, STABLE, SECURE NETWORKING, LEGACY DVI / VGA VIDEO SUPPORT, 4K UHD(60HZ), DISPLAY PORT 1.2, ENHANCED CPU OVERVOLTAGE PROTECTION, WHQL CERTIFIED. WINDOWS 10 READY., MILITARY CLASS 4 COMPONENTS, EASY DIAGNOSTIC, TOTAL FAN CONTROL
Warranty
Warranty Summary
  • 3 Years Warranty
Covered in Warranty
  • Warranty of the product is limited to manufacturing defects only
Not Covered in Warranty
  • Warranty does not cover any physical damage.
Warranty Service Type
  • Carry in Warranty.Customer needs to take the product to the nearest service centre.
