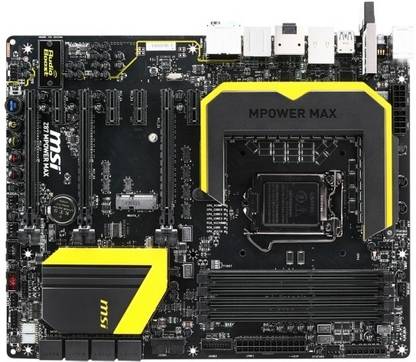

    MSI Z87 MPower Max Motherboard

    MSI Z87 MPower Max Motherboard

    Price: Not Available
    Currently Unavailable
    3 Years MSI India Warranty and Free Transit InsuranceKnow More
    Highlights
    • Intel Z87
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    In The Box
    Sales Package
    • Motherboard, Installation Guide, CD, Shield
    General
    Brand
    • MSI
    Model ID
    • Z87 MPower Max
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1150
    Compatible Processors
    • Intel 4th Generation Core i3 Processor, Intel Celeron Processor, Intel Pentium Processor, Intel 4th Generation Core i7 Processor, Intel Xeon Processor, Intel 4th Generation Core i5 Processor
    FSB
    • 100 MHz
    Chipset
    • Intel Z87
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1600 MHz, 2400(OC) MHz, 1066 MHz, 1333 MHz, 3000(OC) MHz, 1866(OC) MHz, 2000(OC) MHz, 2133(OC) MHz, 2200(OC) MHz, 2666(OC) MHz, 2600(OC) MHz, 2800(OC) MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Storage
    SATA 6 Gb/s
    • Intel Z87, ASMedia ASM1061
    RAID Controller
    • Intel Z87
    RAID Configurations
    • 0, 1, 5, 10
    Graphics
    Integrated Graphics card
    • Yes
    External Graphics Card Support
    • Yes
    Multi GPU Support
    • Yes, 3-way AMD CrossFireTM Technology, 2-way NVIDIA SLI Technology, Lucid Virtu MVP 2.0
    Audio
    Audio Codec
    • Realtek ALC1150
    Audio Channels
    • 7.1
    Audio Features
    • HD Audio, Supports S/PDIF Output
    Connectivity
    Ethernet Controller
    • Killer E2205
    Ethernet Features
    • 1 x PCI Express Gigabit LAN 10/100/1000 Mb/s
    Wireless and Bluetooth
    • Supports IEEE 802.11n and Bluetooth v4.0
    Expansion Slots
    PCIe x1 Slots, Generation
    • 4, 2
    PCIe x16 Slots, Generation
    • 3, 3
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 8
    USB 2.0 Headers
    • 2
    USB 3.0 Headers
    • 2
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 2 (Processor Fan Headers), 3 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Multi BIOS Switch, 1 x Discharge Jumper, 1 x GO2BIOS Button, 14 x V-check Points (7 x V-check Connectors, 2 x System Panel Connectors, 1 x OC Genie Button, 7 x V-check Spots) - 1 x Power Button, 1 x Wi-Fi / Bluetooth Module Connector, 1 x Chassis Intrusion Connector, 1 x Clear CMOS Jumper, 1 x OC Genie Mode Switch, 1 x Reset Button, 1 x 2 Digit Debug Code LED, 2 x Base Clock Control Buttons
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 2
    USB 3.0 Ports, Controller
    • 6
    HDMI Ports
    • 2
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    Other Ports
    • 1 x Clear CMOS Button, 1 x Display Port
    General Features
    Overclocking
    • OC Genie 4: Overclock in 1 Second
    OS Support
    • Windows: 7, 8
    BIOS
    • Plug and Play BIOS, Expansion Cards of the Board Automatically, Desktop Management Interface
    Features
    • OC Certified: Military Class Burn-in Test Passed, Audio Boost, Wireless Display, 20 Phase DigitALL Power Design, Click BIOS 4: Easily Fine-tune Your System, World's 1st PCI Express Gen 3, Sound Blaster Cinema: Realistic Surround Sound Experience, Supports Intel Extreme Memory Profile (XMP), Military Class 4: Top Quality & Stability, 9 Mounting Holes
    Advanced Technologies
    • Supports Intel Rapid Storage Technology, GPU Virtualization Technology
    Limitations
    • This Platform Supports Dual-display and Triple-display Function, Supports Intel Core Processors on Windows 7 and Windows 8
    Dimensions
    Dimensions
    • 244 x 304 mm
    Warranty
    Domestic Term
    • 3 Years MSI India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Years MSI India Warranty and Free Transit Insurance
