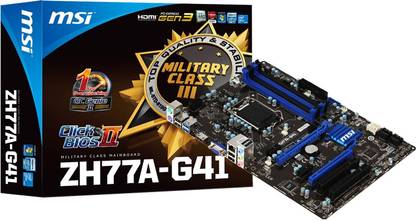

    MSI ZH77A-G41 LGA 1155Socket ATX Intel H77 Chipset DDR3 Motherboard

    MSI ZH77A-G41 LGA 1155Socket ATX Intel H77 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Please Contact 011-41758808 mail id:rma@msi-in.comKnow More
    Highlights
    • Intel H77
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    In The Box
    Sales Package
    • Motherboard, 2 x SATA3 Cable, 1 x M- Connector (2 in 1), I/O Shield
    General
    Brand
    • MSI
    Model ID
    • ZH77A-G41
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
    Chipset
    • Intel H77
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 2000 (O.C) MHz, 1066 MHz, 1800 (O.C) MHz, 2400 (O.C) MHz, 2200 (O.C) MHz, 1600 MHz, 1333 MHz
    Storage
    SATA 3 Gb/s
    • Intel H77 Chipset
    SATA 6 Gb/s
    • Intel H77 Chipset
    RAID Controller
    • Intel H77 Chipset
    RAID Configurations
    • 0, 1, 5, 10
    Graphics
    External Graphics Card Support
    • Yes
    Multi GPU Support
    • Yes, AMD CrossFireX
    Audio
    Audio Codec
    • Realtek ALC887
    Audio Channels
    • 8
    Connectivity
    Ethernet Controller
    • Realtek 8111E
    Ethernet Features
    • 10/100/1000 Mbit
    Expansion Slots
    PCI Slots
    • 3
    PCIe x1 Slots, Generation
    • 1, 2
    PCIe x16 Slots, Generation
    • 1
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    SATA 6 Gb/s Headers
    • 2
    USB 2.0 Headers
    • 2
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 4 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x Clear CMOS Jumper, 1 x Serial Port Connector, 1 x Parallel Port Connector, 1 x Chassis Intrusion Connector
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2
    HDMI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    General Features
    Overclocking
    • OC Genie II - Auto Overclocking to Boost Performance in 1 Second
    Support CDs
    • MSI Live Update 5, BIOS, Driver, VGA, Utility Update
    BIOS
    • Click BIOS II : Easy-to-use UEFI BIOS Interface, Mainboard BIOS Provides Plug & Play BIOS, Mainboard Provides a Desktop Management Interface(DMI) Function
    Features
    • PCI Express Gen 3 Mainboard Brand, 6 Mounting Holes
    Advanced Technologies
    • MSI 3TB+ Infinity Technology
    Advanced Features
    • UEFI and Software Graphical User Interface, Click Bios 2, Instant OC, M - Flash, Winki 3, OC Genie II
    Dimensions
    Dimensions
    • 216 x 305 mm
    Warranty
    Domestic Term
    • 3 Years MSI India Warranty and Free Transit Insurance.
    Warranty Summary
    • Please Contact 011-41758808 mail id:rma@msi-in.com
    Covered in Warranty
    • Manufacturing Defects are Covered
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
