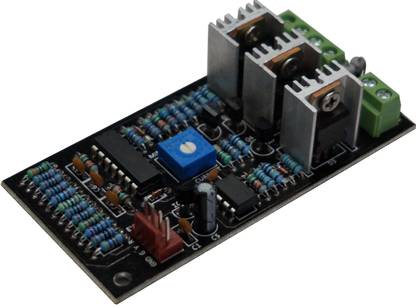

MTS 12 V 7 Amps Analog PCB PWM Solar Charge Controller

Analog IC Based solar charge controller is designed to charge batteries in a effect way so that it life time can be increased. Pulse width modulation technique is used to charge battery in effect way. IC is used to generate PWM. LEDs are used to show valued of charging status of battery as well as Solar availability. Protection is also introduced, so that in case of excess voltage, solar charge controller will stop charging. It can handle up to 7 ampere i.e. 100W Solar panel (21V open circuit type). LED current is adjustable from 0 to 3.0 amps (36Watts). Includes inbuilt LED Driver. Automatic dusk-to-dawn operation of the load. Overcharge protection. System status display on LED. Low battery lock (Load will be permanently Off until Battery reaches above 12V). Charging current changes to ‘pulsed’ at full charge. Low current consumption. Highly efficient design. Suitable for 10-100W solar panels (Max. 7 Amps) Compact Double sided SMD Design. Connectors for easy installation. Only PCB Module. No Cover included. Suggested Use: DIY for Projects, Replacement for faulty charge controller for Street lights. PCB size: 90*45 mm, Mounting Hole 3.5 mm Dia.
