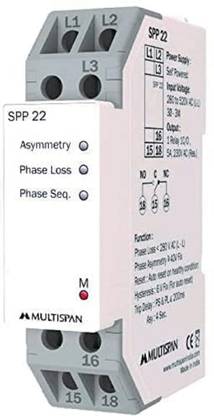

MULTISPAN SPP-22 Single Phase Preventer Relay Multipurpose Contro...

more

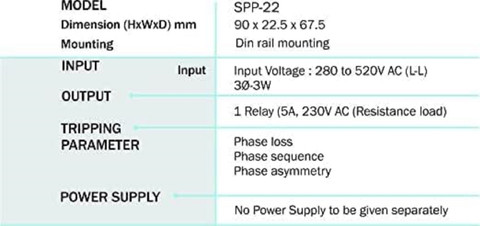

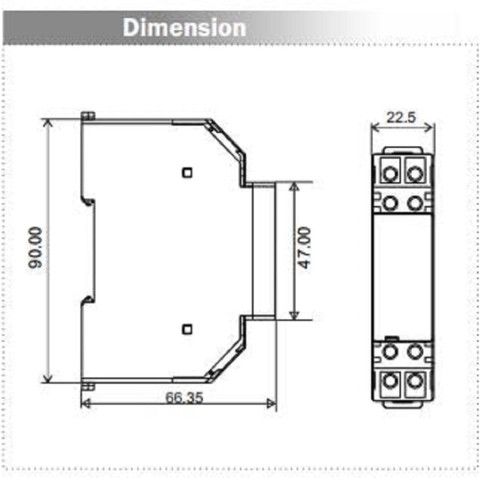

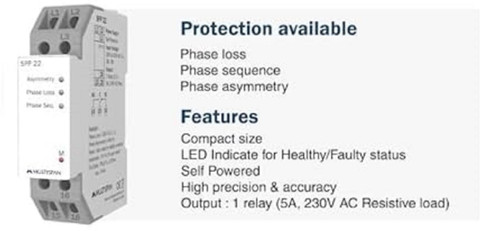

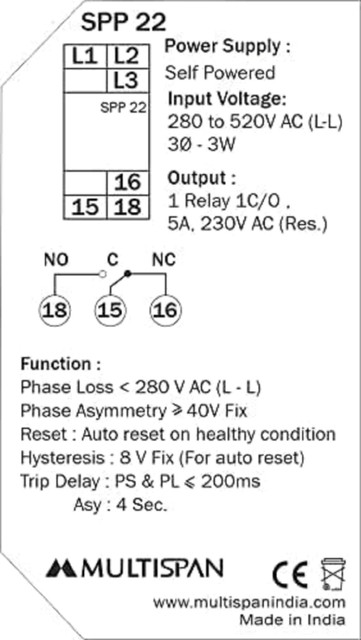

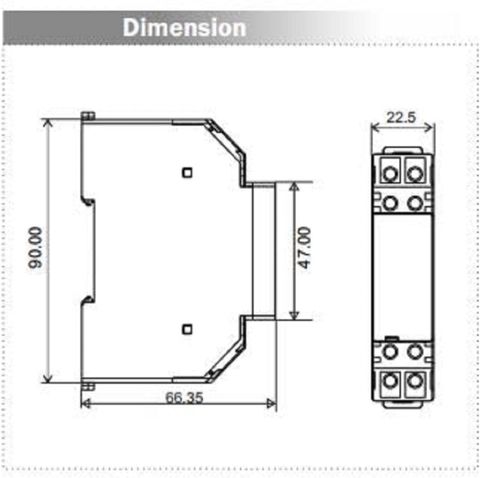

MULTISPAN Protection relays and single phase preventers, help the user to monitor the functionality of given power parameters and control the same by taking appropriate action through relay output. Both analog and digital versions are available. While analog versions come with few parameters and factory set values,digital versions are more versatile helping the user to select the parameters and limits. These units display functional faults and help user to monitor the instant values while functioning faultlessly. Resetting Possible in Manual mode from front button/rear terminals. Complete Protection: -With Phase Loss Protection, The Device Will cut-off Complete Power Supply in Absence of Phase. Thus Increasing Safety Factor to Industrial Appliance in Use Calibration: - You Can Even Calibrate Voltage And Current Readings by Yourself. Model no :SPP-22 Single Phase Preventer. Dimension (HxWxD)mm : 90 x 22.5 x 67.5 Supply- Voltage430 V AC Reset - Auto Reset on Removal of fault condition Output - 1C/0, 10 A 250V AC 10A, 28V DC (Resistive Load) Hysteresis - 8V Phase Asymmetry - 40V AC (L-L) Phase Loss - 280V AC (L-L) Country of Origin - Made in India.
