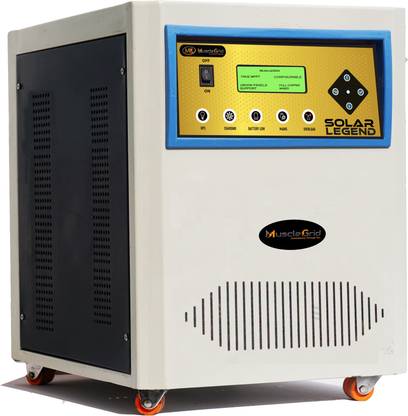

MuscleGrid India SOLAR LEGEND 4.2KVA TRUE MPPT 48V Hybrid Solar Inverter HIGHLY CONFIGURABLE WiFi IoT Solar Inverter with Home Automation Pure Sine Wave Inverter

MuscleGrid India SOLAR LEGEND 4.2KVA TRUE MPPT 48V Hybrid Solar Inverter HIGHLY CONFIGURABLE WiFi IoT Solar Inverter with Home Automation Pure Sine Wave Inverter

Price: Not Available
Currently Unavailable
Warranty
2 Years
Highlights
  • Backup Time: 72 hrs
Description
MuscleGrid India is a top brand in Voltage stabilizers, our SOLAR PCU is an integrated hybrid solar system consisting of a Solar Charge Controller, Inverter and an AC Mains Charger. Batteries are charged either through Solar / Grid / DG set or with sharing of current. System gives priority to Solar Power first and uses Grid power only when Solar Power / Battery Charge is insufficient to meet the load requirements. Solar Power output and the load are continuously monitored. When batteries are charged to the preset level the Solar UPS automatically cuts off from the system and load runs through the UPS using the batteries. Maximum battery charging is done through the solar to reduce the energy used from grid power. This is a DSP Technology based pure sinewave 48V-4.2KVA hybrid solar inverter cum PCU which is mostly used for running lighting, home loads and even water pumps of upto 2HP however only 5 star inverter type air conditioners can be run. Inverter is very easy to configure according to needs. SPV Open Circuit Voltage Range (Min-Max) - 72-200V Max SPV Power 3500 Max Batt Current 70A Recommended Panel Cell 60/72 Switching Element MOSFET Controller DSP Efficiency 95% Battery Charging Stages 5 (Softstart, Boost, Absorbtion, Float, Equalise) IP20
Read More
Specifications
In The Box
  • Hybrid Solar Inverter, Manual, Extra Fuse, 3 Strong Copper Wires
General
Brand
  • MuscleGrid India
Model Number
  • SOLAR LEGEND 4.2KVA TRUE MPPT 48V Hybrid Solar Inverter HIGHLY CONFIGURABLE
Battery Included
  • No
Back Up Time
  • 72 hrs
Load Options
  • 2HP Submersible Pump, 2 LED TVs 40", 8 LED Bulb 9W, 4 Fans, 1 Refrigerator
Type
  • Pure Sine Wave Inverter
Model Name
  • WiFi IoT Solar Inverter with Home Automation
Mode Type
  • Solar Inverter
Material
  • Hard Metal
Technology Used
  • MPPT Based
Solar Power Compatible
  • Yes
Switch Type
  • MOSFET
Output Features
Efficiency
  • 95 %
Output Voltage
  • 230V
Output Frequency
  • 50Hz
Overload
  • 3.4KW
Output Power
  • 3300 W
Change Over Time
  • 10 ms
Surge Rating
  • 4200 VA
Input Features
Input Voltage
  • 220V
Input Frequency
  • 50Hz
Low Cut Input Voltage
  • 10.5v
Low Cut Recovery Input Voltage
  • 11.5v
High Cut Input Voltage
  • 15.5v
High Cut Recovery Input Voltage
  • 15v
Other Input Features
  • 5 STAGE BATTERY CHARGING (Softstart, Boost, Absorbtion, Float, Equalise)
Battery Features
Battery Type
  • SMF and Tubular
Number of Batteries
  • 4
Battery Voltage
  • 48V
Compatible Battery Types
  • Tubular, SMF
Convenience Features
Display Type
  • Digital
Cooling System
  • Fan Based
Dimensions
Width
  • 360 cm
Height
  • 460 cm
Depth
  • 260 cm
Weight
  • 35 kg
Warranty
Warranty Summary
  • 2 Years
Service Type
  • 1 Year replacement + 1 Year repair
Covered in Warranty
  • All Manufacturing defects
Not Covered in Warranty
  • Mishandling of product, Overload Burns
Ratings & Reviews
1
3 Ratings &
0 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 0
  • 0
  • 0
  • 0
  • 3
Have you used this product? Be the first to review!
Questions and Answers
Q:Does it support net metering? Can we export power from solar to grid?
A:No Sir, that is only possible in Chinese imported inverters. MuscleGrid is 100% Indian made.
MuscleGrid
Flipkart Seller
5
1
Report Abuse
Q:Kitni aur konsi battery lagegi .
A:2 Batteries of 12 v each, lead acid. Or Single battery 25.6v Lithium.
MuscleGrid
Flipkart Seller
5
3
Report Abuse
Q:Maximum kitne Ah ki battery connect ki ja sakti h
A:200 AH 24V.
MuscleGrid
Flipkart Seller
3
2
Report Abuse
Q:Full coper winding ternsfarmer h
A:Hybrid
MuscleGrid
Flipkart Seller
0
0
Report Abuse
Q:2hp single pes submersible pump
A:Go with transformer less inverter
MuscleGrid
Flipkart Seller
0
0
Report Abuse
Q:We used 60v Battery
A:no, only 24v battery supported.
MuscleGrid
Flipkart Seller
0
0
Report Abuse
Q:Copper transformer or aluminium transformer?
A:Hybrid.
MuscleGrid
Flipkart Seller
0
1
Report Abuse
Q:Kiya 1.5tone ki AC bhi chal jayegi
A:Go for 2.4 KW battery less model of MuscleGrid.
MuscleGrid
Flipkart Seller
0
2
Report Abuse
Q:What is real output wattage
A:2200 watts, for heavy load, go for our hybrid series.
MuscleGrid
Flipkart Seller
0
2
Report Abuse
Q:Is doongle is attached to it
A:Yes, in case you do not receive it, you can register on website and get it for free.
MuscleGrid
Flipkart Seller
0
0
Report Abuse
