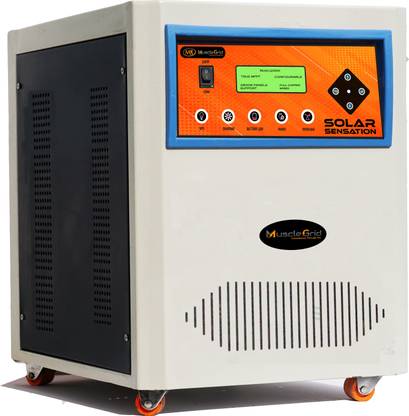

MuscleGrid India WiFi IoT SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter With Home Automation Fully Automatic AI PCU (Solar + Non-Solar) Pure Sine Wave Inverter

MuscleGrid India is a top brand in Voltage stabilizers, our SOLAR PCU is an integrated hybrid solar system consisting of a Solar Charge Controller, Inverter and an AC Mains Charger. Batteries are charged either through Solar / Grid / DG set or with sharing of current. System gives priority to Solar Power first and uses Grid power only when Solar Power / Battery Charge is insufficient to meet the load requirements. Solar Power output and the load are continuously monitored. When batteries are charged to the preset level the Solar UPS automatically cuts off from the system and load runs through the UPS using the batteries. Maximum battery charging is done through the solar to reduce the energy used from grid power. This is a DSP Technology based pure sinewave 48V-4.2KVA hybrid solar inverter cum PCU which is mostly used for running lighting, home loads and even water pumps of upto 2HP however only 5 star inverter type air conditioners can be run. Inverter is very easy to configure according to needs. SPV Open Circuit Voltage Range (Min-Max) - 64-120V Max SPV Power 2400 Max Batt Current 50A Recommended Panel Cell 60/72 Switching Element MOSFET Controller DSP Efficiency 95% Battery Charging Stages 5 (Softstart, Boost, Absorbtion, Float, Equalise) Battery Low Cut Off 10.5/Batt+/-2% Low Cut Off Recovery 11.5/Batt+/-2% Low Buzzer 10.7/Batt+/-2% High Cut Off 15.5/Batt+/-2% High Cut Off Recovery 15.0/Batt+/-2% Boost Charging Volt by SPV(TUB) 14.5/Batt+/-2% Boost Charging Volt by Grid(TUB) 14.0/Batt+/-2% Charging Current by Grid 10A+/-2% Output Output@ No load 220 +/-2% Output Frequency 50 +/- 2% Overload Watts 3.2KW AC Amps 13.9 Discharging Amps 67 Output Low Retry 1 time Output Short Circuit 2 time Voltage Range(lnverter) 100-280 +/-2% Voltage Range(UPS) 175-255 +/-2% Inverter Switching Element MOSFET Output voltage 220 +/-2% Phase 1Phase-3Wire P,N,E Output Waveform Digitally Filtered Pure Sine Wave Frequency 50 Changeover (Mains to Inverter) <10ms Output Power Factor 0.8 Overload Retry 3 Times Switches System ON/OFF, Mode Selection: Hybrid / Smart, INV /UPS Selection Indication Inverter On, Mains In Range, Battery Low/High, Charger On, Overload, Faults Alarm Battery Low, Overload, Charger On, Inverter On, Solar Charger On Protection Overload,Short Circuit Protection,Over Voltage,SPV Surge and Transient protection (MOV Varistors), Reverse Polarity of Battery,Over temperature Protection,under voltage and over voltage Protection Cooling Forced Air cooling(Temp Controlled) Operating Temp 0-50 Operating Humidity 95 Protection Class IP20
