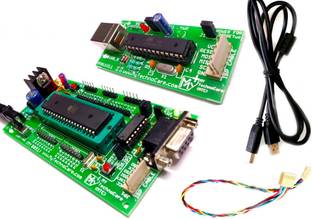

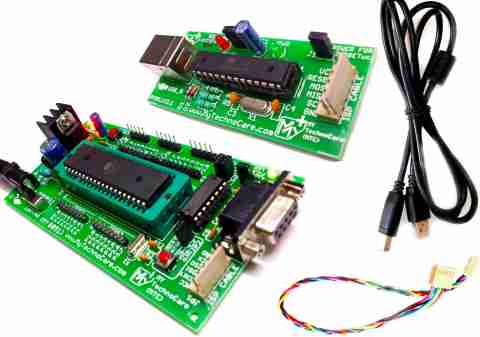

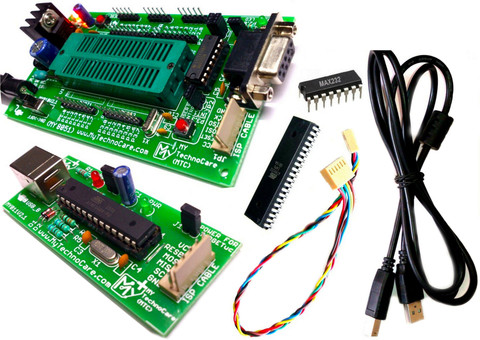

MY TechnoCare 8051 Microcontroller Kit with ZIF Socket and AVR-8051/8052 USB Micro Controller Board Electronic Hobby Kit

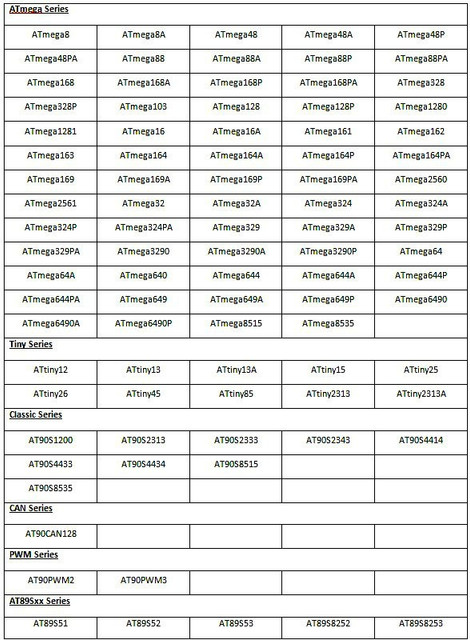

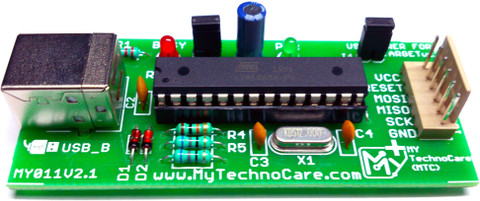

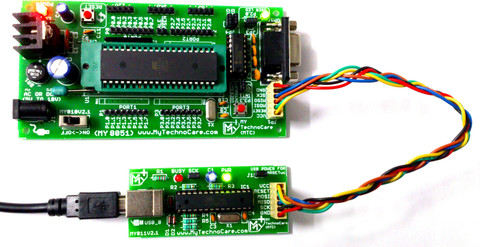

8051 Microcontroller Board has DIP 40 Pin Microcontroller ZIF (Zero Insertion Force) Socket. For Easy Insert and Remove of IC. ZIF Socket Protect Your Microcontroller From Damage. | ABOUT 8051 PROGRAMMER: For How To Program 8051 AVR Microcontroller |How to install driver |Circuit Diagram-Connection|Driver For All Windows OS 64|32-bit (All in 1 RAR file) Download= https://bit.ly/progallinfo | AVR 8051/8052 USB ISP Programmer For Atmel AVR & 8051 Microcontroller With Free USB Cable.Programmer Support many Digital Microcntrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny) ATmega 8/328, 16, 32 etc with the same Programmer.For Supported IC List: SEE Product Images.It is low cost USB based programmer.No need to take out Target Micro controller from the development Board.Programmer will work with variety of Atmel AVR & 8051 microcontroller.ItAllows You to Read/Write the Microcontroller Flash,EEPROM,Fuse Bit & Lock Bit.Support Windows OS(Xp to 10), OS X & Linux. ATmega8 with USBasp Firmware Pre-loaded.SCK Option to Support Targets With Low Clock Speed(<1.5 MHz).5 KB/sec Maximum Write Speed. Programmer can Provide 5V supply for Target Microcontroller,so No Need of Any External Supply.Two Status LEDs|Green LED:Power Supply Indicator|RED LED :It is ON While Programmer is Busy.6 pin Polarized ISP Interface for Easy Connection.Supported Software: Progisp,AVRdude,Khazama AVR Programmer | ABOUT 8051 DEVELOPMENT BOARD: If You are Learning Microcontroller Programming & want to make Project based on 8051 microcontroller then This Board will help you.With this board you can Develop & Prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx etc) 40 pin microcontrollers. 1.5 Amp Bridge Rectifiers allow this board to be Powered with both AC & DC power supply adapters.It RS232 Serial port for flashing like P89V51RD2 (NXP) microcontrollers & also use for interfacing GSM module,GPS Module,RFID Module.There is 5V, 12V, GND Power bus which allow to Power external Peripherals module. FEATURES of 8051 Board:DIP 40 Pin Microcontroller ZIF (Zero Insertion Force) Socket. For Easy Insert and Remove of IC. ZIF Socket Protect Your Microcontroller From Damage.RS232 Interface Circuit for Easy Communication with PC & other Serial Devices(GPS modules, GSM Modems, etc).High quality FR-4(1.6 mm) PCB.On-Board bridge rectifier so that board can accept both AC and DC Input voltages Power supply .Recommended Input Voltage : 9-12V.Min-Max Input Voltage : 9-18V.On-Board 5 mm Power Plug-in DC Jack.On-Board 5V regulator (LM7805) circuit.On-Board Power ON - OFF switch.On-Board power indication RED LED.On-Board GREEN USER LED connected to P2.0 through jumper JP3.On-Board Input User Switch P3.3 through jumper JP2.On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.On-board Quartz Crystal 11.05892 MHz.Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin.External Pull-Up resistors for Port 0.On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.Four 3mm mounting hole for easy mounting.On-board Reset button.Dimensions: 12cm x 6.4cm.NOTE: POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM. For Example Code of 8051 Microcontroller.Have any Queries; Please Contact Us mytechnocare.info@gmail.com or Visit Mytechnocare Website.|Note:Design,color or Parts of the Product may vary as per the Availability.
