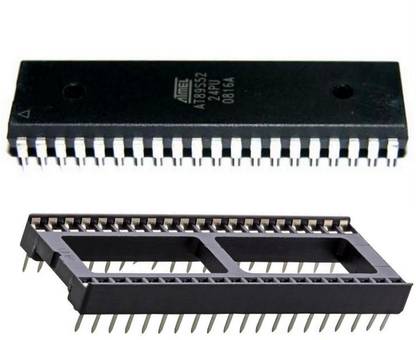

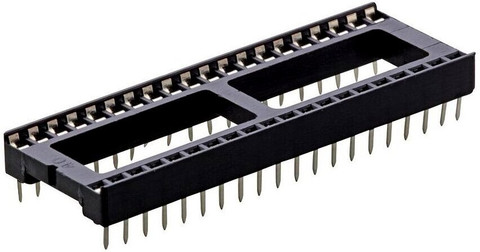

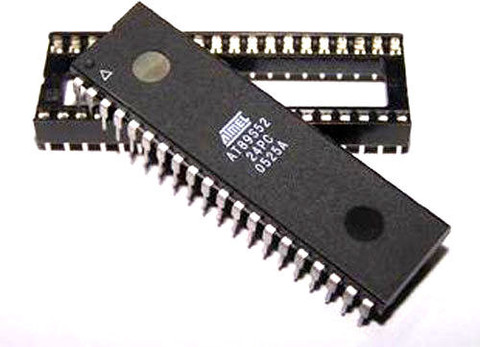

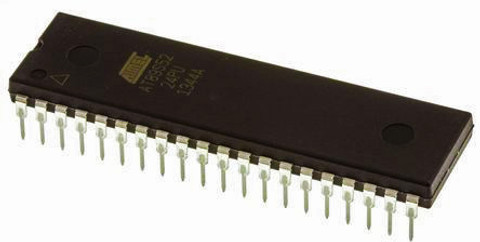

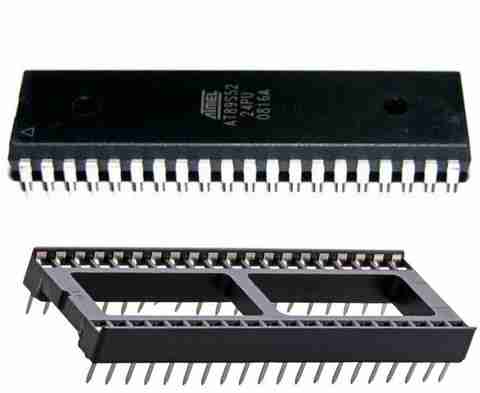

MY TechnoCare AT89S52 ATmel 8051 Microcontroller+40Pin DIP IC Socket|8051 Microprocessor 8-Bit RISC Processor

The AT89S52 is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pin out. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, the Atmel AT89S52 is a powerful micro controller which provides a highly-flexible and cost-effective solution to many embedded control applications. FEATURES AND USAGE The AT89S52 provides the following standard Features: Compatible with MCS-51Products 8K Bytes of In-System Programmable (ISP) Flash Memory – Endurance: 10,000 Write/Erase Cycles 4.0V to 5.5V Operating Range Fully Static Operation: 0 Hz to 33 MHz Three-level Program Memory Lock 256 x 8-bit Internal RAM 32 Programmable I/O Lines Three 16-bit Timer/Counters Eight Interrupt Sources Full Duplex UART Serial Channel Low-power Idle and Power-down Modes Interrupt Recovery from Power-down Mode Watchdog Timer Dual Data Pointer Power-off Flag Fast Programming Time Flexible ISP Programming (Byte and Page Mode) In addition, the AT89S52 is designed with static logic for operation down to zero frequency and supports two software selectable power saving modes. The Idle Mode stops the CPU while allowing the RAM, timer/counters, serial port, and interrupt system to continue functioning. Cost-Effective Solution: Offering an optimal balance of performance and cost, the AT89S52 microcontroller IC presents a cost-effective solution for a wide range of embedded applications, from consumer electronics to industrial automation. DIP configuration for easy insertion into circuit boards Standard pitch for easy integration into PCB. INCLUSIONS 1 X ATMEL AT89S52 IC and 1 X 40 Pin DIP IC Base Socket
