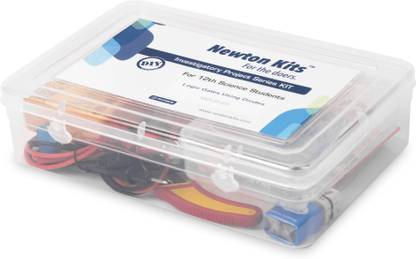

Newton Kits Physics Project - Logic Gates Using Diodes  (Multicolor)

If you are a class 12 science student looking to make your perfect 'physics investigatory project', well you are at the right place. Using this DIY (do-it-yourself) kit, you can make your physics project in just '30 minutes'. 30,000+ students across 200 cities have already used our kits to get full marks in practicals. Not only do you finish your project in time, you can write your project report, understand the basic underlying concepts and have confidence to face Viva questions. Digital logic gates are the building blocks of digital devices. This project pack is dedicated to the study of digital logic gates. This pack consists of 4 projects (1) OR Gate Using Diodes: Realizing the truth table of a 2-input OR gate, and analyzing the path of the current in four cases (2) AND Gate Using Diodes: Realizing the truth table of a 2-input AND gate, and analyzing the path of the current in four cases (3) NOR Gate Using Diodes: Realizing the truth table of a 2-input NOR gate, and analyzing the path of the current in four cases (4) NAND Gate Using Diodes: Realizing the truth table of a 2-input NAND gate, and analyzing the path of the current in four cases
