NIHAKA 4 Pcs A2212 13T 1000KV Brushless Motor DJI F450 F550 MWC Multicopter Motor Control Electronic Hobby Kit

NIHAKA 4 Pcs A2212 13T 1000KV Brushless Motor DJI F450 F550 MWC Multicopter Motor Control Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • Material: Copper
  • Weight: 0.45
Description

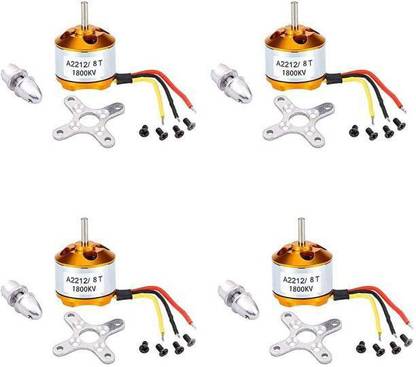

This motor is designed purely for multi-rotor applications. The a2212 includes an integrated prop adaptor for use with many different style props featuring a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also has an in-built aluminum mount for quick and easy installation on your quadcopter frame. This is not a modified airplane out runner. It was designed from the ground up specifically for multi-rotor applications. Specifications - stator dia (mm) - 22 stator length (mm) - 13 stator arms - 12 magnet poles - 14 rpm (kv) - 1400 idle current (a) - 0.68/8 max current (a) - 20 max power (w) - 220/3 biggest thrust (g/s) - 1265/4 rotor dia (mm) - 28 shaft dia (mm) - 3.17 motor length (mm) - 28 overall length (mm) - 42 package contents - 4x brushless motor 4x adapter for shaft 1x mount.
Read More
Specifications
In The Box
  • 4 X Brushless Motor
General
brand
  • NIHAKA
Model Number
  • 4 Pcs A2212 13T 1000KV Brushless Motor DJI F450 F550 MWC Multicopter
Type
  • Motor Control
ROHS Complaint
  • No
Material
  • Copper
Dimensions
Width
  • 12 cm
Height
  • 6 cm
Weight
  • 0.45
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • NA
