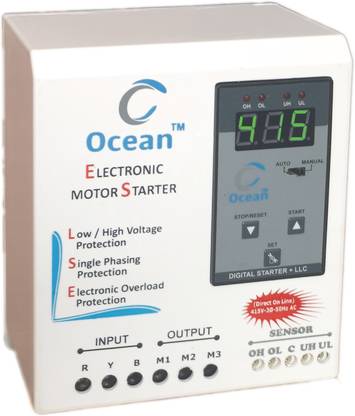

    Ocean sales Digital Water Level Controller With Ampere Sensing Type Three Phase Dol Starter Wired Sensor Security System

    Ocean sales Digital Water Level Controller With Ampere Sensing Type Three Phase Dol Starter Wired Sensor Security System

    Price: Not Available
    Currently Unavailable
    Highlights
    • LED Display
    • 300 ft Detection Range
    • 0 m Max Alarm Distance
    • Drilling, Wiring
    Description
    Fully automatic water level controller is used to switch on and off the motor according to level of water in upper tank and under ground tank, It Has 2 mode of operation 1-AUTO & 2-MANUAL, In auto mode:- Auto on occurs when the upper tank water level is low (below OL sensor level) and confirming water is present in the under ground tank. and it Auto off the motor when upper tank is full / when under ground tank is empty, In manual mode:-This mode is used to operate motor manually.
    Read More
    Specifications
    Warranty
    Not Covered in Warranty
    • Burn Out
    Domestic Warranty
    • 1 Year
    International Warranty
    • 1 Year
    In The Box
    • 1 Unit, 6 Nos Sensor, User Manual, Mounting Screw
    General
    Brand
    • Ocean sales
    Model Number
    • Digital Water Level Controller With Ampere Sensing Type Three Phase Dol Starter
    Wired/Wireless
    • Wired
    Number of Sensors
    • 6
    Brand Color
    • White
    Display Type
    • LED
    Audible Alarm
    • 0
    Installation Type
    • Drilling, Wiring
    Detection Range
    • 300 ft
    Minimum Alarm Distance
    • 0 m
    Maximum Alarm Distance
    • 0 m
    Color
    • White
    Display Indicator
    • Voltage, Ampere, Appropriate Fault
    LED Indicators
    • Yes
    Detection Angle
    • 0 degree
    Stand By
    • No
    Suitable For
    • 3 phase DOL Motor
    Key Features
    • 3 Phase digital ampere sensing dol starter with water level controller, and 3 digit seven segment display for showing voltage and ampere taken by motor, and to display fault,, It has high voltage protection, low voltage protection, over load protection (settable from 2 to 20 ampere), dry run protectio(settable from 0 to19 ampere), current unbalance protection,, This device has current sensing protection, so it protect motor from burn out, while in situation of unbalaced current taken by motor in 3 different phase(R,Y and B) due to unbalaced voltage or due to phase failure or due to motor problem,, input volt-415 volt a.c., It comes with auto manual facility, in auto mode, it on and off the motor in according to level of water in upper tank and under ground tank, even it has 4 L.E.D. indication to indicate level of water in upper tank and in underground tank, and in manual mode- user can on and off the motor manually whenever they required.
    Additional Features
    Technology Used
    • MicroController Based
    Remote Control
    • No
    Dimensions
    Width
    • 15 cm
    Height
    • 18 cm
    Depth
    • 8 cm
    Weight
    • 1500 g
    Power Features
    Power Requirement
    • 415 volt
