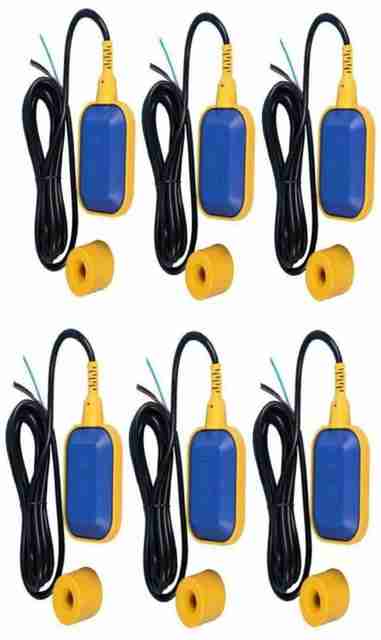

OCEAN STAR Water Float Switch Sensor for Water Level Controller with 3 Meter Wire Wired Sensor Security System

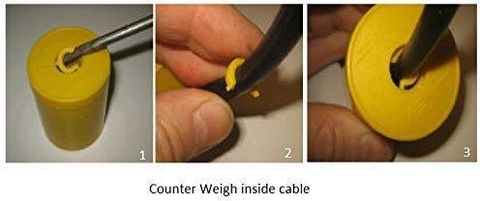

Endurance: =500,000 times of wire and Plastic Body Electrical Rated voltage: 250V and Rated current: 8A/Contacts: NO+NC and Weight: 660 g Cable: 3 Meter (customized wire length is available)/ A float switch is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices and Use: Water Level, liquid level Controller INSTRUCTIONS, for INSTALLATION Insert the cable in the counter weight (yellow color part), from the conical part and rotate it. Thus causing the plastic ring inserted in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver). The ring should then be positioned in the point where it is desired to block the counterweight. Force the counterweight on the ring by rotating it using a slight pressure
