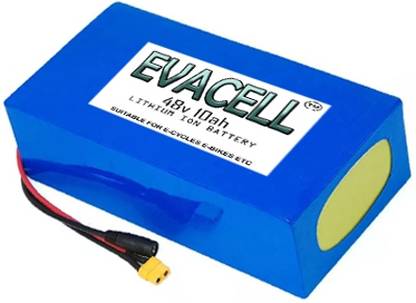

Ohm 48v 10ah lithium ion battery For E-bike 10 Ah Battery for All Vehicles
Price: Not Available
Currently Unavailable
Warranty
1 year manufacturer warranty
Highlights
Battery Type: Lithium Ion Battery
Battery Capacity: 10 Ah
Suitable For: All Vehicles
Voltage Output: 48 V
Description
1 Year Warranty
Post warranty Service
Original Battery Capacity
Small & Compact Size Battery
3 Year Battery Life
1.5 Time More mileage than Normal Lead acid Battery
This is 48v Lithium Ion Battery or NMC Battery. This Battery is best used for E Bike/E Scooty. This Battery fits for Both HUB Motor and DC gear Motor. We manufacture this battery in our industry with proper IR testing, Spot welding, Balancing and with Premimum quality BMS board. Its Higher in power, higher in Mileage than Lead acid Battery. You can use this battery in your Scooty or bike in replacement of your old Lead acid battery. This Battery is compatible with any electrical scooty or bike of 48v rated. This battery is protected with over charge protection. Low discharge protection. This battery weight is very low than your normal lead acid battery. This Battery provides a lifespan of nearly 3 years where a normal lead acid battery sustain for only 1 year’s of life. This Battery Gives 1.5 time more mileage than your normal lead acid battery.
Use only lithium Ion charger for this battery. Do not use Lead acid Battery Charger.
Battery warranty –
1 Year warranty is available with this battery. Details of warranty policy is available at our “warranty Policy” Page.
Battery specification –
Battery Dimension
Length x Width x Height = 26x10x7 cm
Weight = 2 kg
Battery Wires -
One wire for both discharge and charge. Its 1.5sqmm wire. Connector is XT60 on wires end. We also provide female connector.
Battery cells Details -
Cell - Roofer 2500 mah 3C EV Grade
Total no of cell used – 13x4-52 pcs
Charge Cycle with full Capacity - 1200 aprox
BMS Specification - 13s40A, with Heat Sink protection
Thermal sensor Protection - YES
Maximum Battery Capacity - 10AH or 10,000 mah
Battery Energy – 480wh
Maximum Power Motor you can attach – 750 watts
Maximum discharge current - 20A
Maximum charging current - 10A
Battery standard voltage - 48v
Battery full charge voltage – 54.4v
Battery Low discharge voltage- 42v
Back up of Battery –
This battery can give a mileage of 1.5 times than normal lead acid Battery.
Charging Specification -
Charger Voltage- 54v
Charger Current – Within 3 to 10 amps
Read More
Specifications
In The Box
Sales Package
1pcs 48v li-ion battery with connector and BMS
General
Brand
Ohm
Model Number
48v 10ah lithium ion battery For E-bike
Suitable For
All Vehicles
Battery Capacity
10 Ah
Battery Type
Lithium Ion Battery
Maintenance Free
Yes
With Electrolyte
No
Voltage Output
48 V
Number of Cells
52
Factory Charged
Yes
Material
lithium ion
Warranty
Warranty Summary
1 year manufacturer warranty
Covered in Warranty
BMS and cells
