OLatus Arduino Uno R3 SMD With PIR HC-SR501 and Breadboard 400 Points Security Circuit and Motion Detector Electronic Hobby Kit

OLatus Arduino Uno R3 SMD With PIR HC-SR501 and Breadboard 400 Points Security Circuit and Motion Detector Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC, Battery
  • RoHS Compliant
  • Material: Plastic
  • Weight: 265
Description
HC-SR501 PIR MOTION SENSOR DETECTOR MODULE: Infrared sensor module is based on infrared technology, automatic control products. High sensitivity, high reliability, low power consumption, low voltage operation mode. Infrared Sensor with Control Circuit Board The Sensitivity and Holding Time Can be Adjusted. Widely used in various auto-sensing electrical equipment, especially for battery-powered automatic control products. Breadboard-400 Points Solderless Breadboard: This is a cute half size breadboard, good for small projects. It's 2.2" x 3.4" (5.5 cm x 8.5 cm) with a standard double-strip in the middle and two power rails on both sides. You can pull the power rails off easily to make the breadboard as thin as 1.4" (3.5cm) and stick it onto an Arduino protoshield.You can also cut these in half with a saw to create 2 tiny breadboards, or "snap" these breadboards together either way to make longer and/or wider breadboards. Arduino UNO R3 SMD version microcontroller: Arduino/Genuino Uno is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Read More
Specifications
In The Box

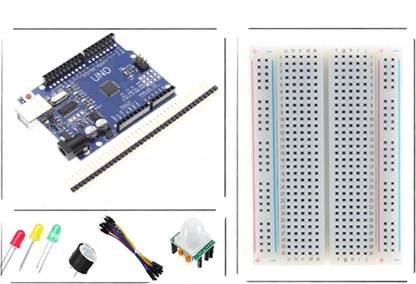

  • 1 x HC-SR501 PIR MOTION SENSOR DETECTOR MODULE, 1 x Breadboard 400 holes bread plate, 1 x Arduino Uno R3 SMD Version Micro Controller, 1 x Piezo Buzzer, 1 x 10k Ohm Resistance, 3 x 220 ohm Resistance, 3 x Led 6 x jumper wire
General
brand
  • OLatus
Model Number
  • Arduino Uno R3 SMD With PIR HC-SR501 and Breadboard 400 Points
Type
  • Security Circuit and Motion Detector
ROHS Complaint
  • Yes
Material
  • Plastic
Dimensions
Width
  • 4 cm
Height
  • 2 cm
Weight
  • 265
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC, Battery
Other Power Features
  • HC-SR501 PIR MOTION SENSOR DETECTOR MODULE:, Working Voltage Range: DC 4.5V- 20V, Detection Range: <140°, Delay Time: 5 to 200s, Blockade time: 2.5s (Default), Dimension: 3.2cm x 2.4cm x 1.8cm, Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M), Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce, Breadboard-400 Points Solderless Breadboard:, Material: abs plastic and tinned phosphor bronze, Self adhesive Perfect for Arduino shield prototyping and testing, Accept wire with diameter20-29awg, Voltage/current: 300v/3-5a, This is a cute half size breadboard, good for small projects, Dimensions: 83.5 x 54.5 x 8.5mm. 9.7mm(0.38in) thick, including sticky foam on the bottom, Arduino Uno R3 SMD Version Micro Controller:, Microcontroller ATmega328, Input Voltage (recommended) 7-12V, Digital I/O Pins 14 (of which 6 provide PWM output), Analog Input Pins 6, DC Current per I/O Pin 40 mA, Flash Memory 32 KB of which 0.5 KB used by bootloader, Clock Speed 16 MHz
