OLatus Arduino Uno SMD Kit with 1602 LCD Module and Ultrasonic HC-SR04 Educational Electronic Hobby Kit

OLatus Arduino Uno SMD Kit with 1602 LCD Module and Ultrasonic HC-SR04 Educational Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC, Battery
  • Material: Plastic
  • Weight: 270
Description
1602 LCD Module HD44780 16×2 Displays Characters: LCD display module with Wide viewing angle and high contrast.Built-in industry standard HD44780 equivalent LCD controller Commonly used in copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.LCM type Characters Can display 2-lines X 16-characters.Operate with 5V DC Ultrasonic HC-SR04 DISTANCE Measuring module : This ultrasonic sensor module can be used for measuring distance, object sensor, motion sensors etc. High sensitive module can be used with microcontroller to integrate with motion circuits to make robotic projects and other distance, position & motion sensitive products.The module sends eight 40Khz square wave pulses and automatically detects whether it receives the returning signal. If there is a signal returning, a high level pulse is sent on the echo pin. The length of this pulse is the time it took the signal from first triggering to the return echo. Arduino UNO SMD version: Arduino/Genuino Uno is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worring too much about doing something wrong.
Read More
Specifications
In The Box

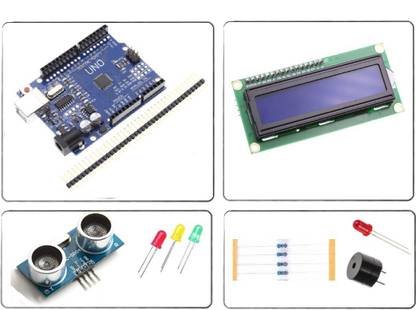

  • 1 x 1602 LCD Module HD44780 16×2 Displays, 1 x Ultrasonic HC-SR04 DISTANCE Measuring module, 1 x Arduino Uno SMD Version Micro Controller, 1 x Piezo Buzzer, 1 x Light detecting resistor(LDR), 1 x 10k Ohm Resistance, 3 x 220 ohm Resistance, 3 x Led
General
Brand
  • OLatus
Model Number
  • Arduino Uno SMD Kit with 1602 LCD Module and Ultrasonic HC-SR04
Skillset
  • Creativity & Imagination
Type
  • Educational
ROHS Complaint
  • No
Material
  • Plastic
Age Group
  • 16+ Years
Dimensions
Width
  • 4 cm
Height
  • 2 cm
Weight
  • 270
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC, Battery
Other Power Features
  • 1602 LCD Module HD44780 16×2 Displays:, LCD display module with Wide viewing angle and high contrast Built-in industry standard HD44780 equivalent LCD controller, Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices, LCM type: Characters, Can display 2-lines X 16-characters, Operate with 5V DC, Ultrasonic HC-SR04 DISTANCE Measuring module:, Working Voltage : 5V(DC), Static current: Less than 2mA, Output signal: Electric frequency signal, high level 5V, low level 0V, Sensor angle: Not more than 15 degrees, Detection distance: 2cm-450cm., High precision: Up to 0.3cm, Input trigger signal: 10us TTL impulse, Echo signal : output TTL PWL signal, Arduino Uno SMD Version Micro Controller :, Microcontroller ATmega328, Operating Voltage 5V, Digital I/O Pins 14 (of which 6 provide PWM output), Analog Input Pins 6, Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM 2 KB, EEPROM 1 KB (ATmega328P), Clock Speed 16 MHz
