OLatus DHT-11 Digital Temperature And Humidity Sensor with Jumper wire. Temperature Sensor and Controller Electronic Hobby Kit
Price: Not Available
Currently Unavailable
Highlights
Power Source: Battery, DC
RoHS Compliant
Material: Plastic
Weight: 150
Description

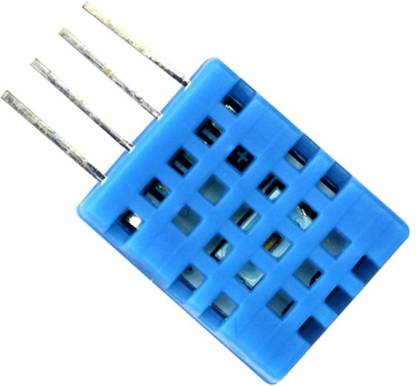

DHT-11 Digital Temperature And Humidity Sensor is a basic, ultra low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin (no analog input pins needed). Its fairly simple to use, but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so in your code please use sensor reading interval at 2 seconds or more. Compared to the DHT22, this sensor is less precise, less accurate and works in a smaller range of temperature/humidity, but its smaller and less expensive.
Read More
Specifications
In The Box
1 x DHT-11 Digital Temperature And Humidity Sensor, 04 x Jumper wires
General
brand
OLatus
Model Number
DHT-11 Digital Temperature And Humidity Sensor with Jumper wire.
Type
Temperature Sensor and Controller
ROHS Complaint
Yes
Material
Plastic
Dimensions
Width
1.5 cm
Height
1 cm
Weight
150
Power Features
Battery Type
NA
No Of Batteries
NA
Battery Size
NA
Power Source
Battery, DC
Other Power Features
DHT11 is a Humidity and Temperature Sensor, which generates calibrated digital output, DHT11 can be interface with any microcontroller like Arduino, Raspberry Pi, etc. and get instantaneous results., DHT11 is a low cost humidity and temperature sensor which provides high reliability and long term stability., It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and outputs a digital signal, Its very simple to use, and libraries and sample codes are available for Arduino, This module makes is easy to connect the DHT11 sensor to an Arduino or microcontroller as includes the pull up resistor required to use the sensor., Only three connections are required to be made to use the sensor – Vcc, Gnd and Output.
