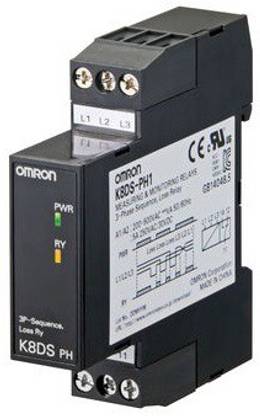

Omron 5A 200/480 VAC Three-phase Phase-sequence Phase-loss Relay Using Voltage Detection Method. 17.5 mm (W). One SPDT output relays - K8DS-PH1 Car Safety Hammer

Input voltage range 200 to 480 VAC Input frequency 50/60 Hz (no presumed range) Overload capacity Continuous 500 V Phase loss detection level 80%±10% of rated input Calculation Formula = 1 - ((Highest phase-to-phase voltage - Lowest phase-to-phase voltage)/ Average three-phase phase-to-phase voltage) Applicable standards Conforming standards EN 60947-5-1 Installation environment (pollution level 2, installation category III) EMC EN 60947-5-1 Safety standards UL 508 (Recognition), Korean Radio Waves Act (Act 10564), CSA: C22.2 No.14, CCC: GB14048.5 Insulation resistance 20 MΩ min. Between external terminals and case Between input terminals and output terminals Dielectric strength 2,000 VAC for one minute Between external terminals and case Between input terminals and output terminals Noise immunity 1,500 V power supply terminal common/normal mode Square-wave noise of ±1 μs/100 ns pulse width with 1-ns rise time Vibration resistance Frequency: 10 to 55 Hz, acceleration 50 m/s2 10 sweeps of 5 min each in X,Y, and Z directions Shock resistance 100 m/s2, 3 times each in 6 directions along 3 axes Degree of protection Terminals: IP20
