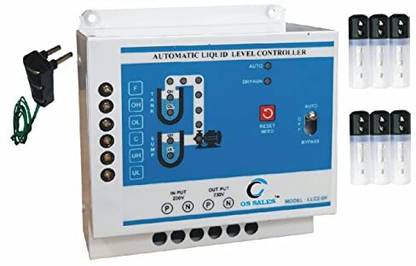

OS Sales Water Level Controller For Monoblock Motor With Dry Run Protection Wired Sensor Security System

Fully Automatic Water Level Controller With Sensor Based Dry Run Protection For Monoblock Motor, with 6 SENSOR+1 Dry Run Sensor FREE in this package, 3 sensor for upper tank and 3 sensor for under ground tank, Dry Run Sensor Placed At Inlet Pipe Of Upper Tank. Warranty: 1 year seller warranty. Working specification: Fully automatic water level controller is used to switch on and off the motor according to level of water in upper tank and under ground tank, if underground tank used, It Has 2 mode of operation 1-AUTO 2-MANUAL, IN Auto Mode:- Auto on occurs when the upper tank water level is low (below OL sensor level) and confirming water is present in the under ground tank. And it will Auto off the motor when upper tank is full / when under ground tank is empty, In Manual Mode:-This mode is used to operate motor manually. Has LED indications for motor on And high and low level LED indications to know the level Of Water in both tank. As well as Dry Run LED And Power On LED, Dry Run Working(Work In Auto Mode Only):- Place Dry Run Sensor As Per Shown In Diagram And Whenever Water Is Not Detect Continues For 2 Minute, Motor Will Off And Dry Indication Will Glow, It will Either Reset Manually Or Auto Reset After 30 Minute. Micro Controller Based Technology. Features: No men power required to operate as fully automatic. Universal Model As It Support To All Types Of Motor And Starters, Operating Voltage=230 volts AC, Load capacity up to 20 AMP
