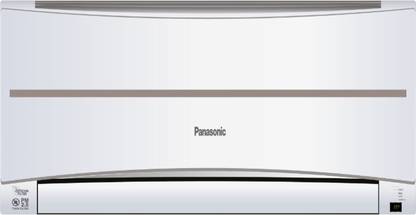

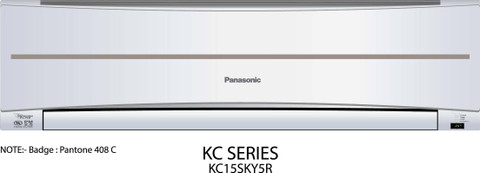

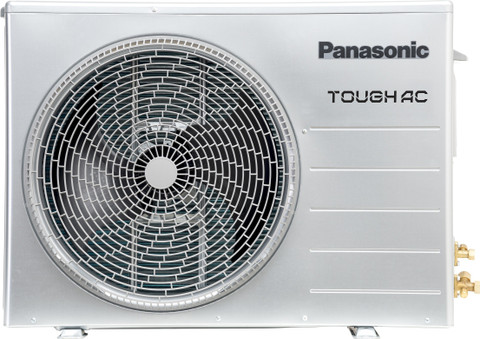

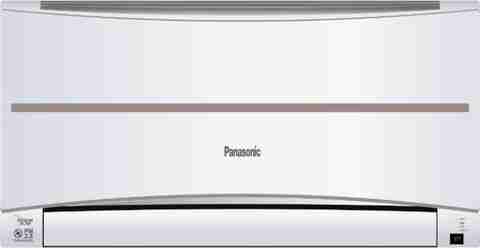

2017 Model 1.2 Ton 5 Star Split Fixed Speed AC
Wi-Fi Connectivity:
Non Wi-Fi
Panasonic 2017 Model 1.2 Ton 5 Star Split Fixed Speed AC (CS/CU-K...more
Buy at ₹38,665
Apply offers for maximum savings
₹38,665
Lowest price for you
OR
₹3,599 x 12m
Pay ₹43,177
Exchange offer
Not available at this Pincode
Up to ₹4,800
Change pincode to exchange item
Exchange offer
Up to ₹4,800
Bank offers
Bank offers
₹2,035 off
View EMI offers
Product highlights
5 Star
Most energy-efficient air conditioner
Auto Restart: Yes
Never worry about power cuts again
Capacity: 1.2 Ton
Suitable for medium sized rooms and moderate usage
Dust Filter: No
Basic air circulation
Wi-Fi Connectivity: No
Traditional cooling without Wi-Fi
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
Body and Design Features
Other Body and Design Features
Simple and Fine Panel Design
Services
Demo Details
Installation and Demo
Installation Details
Split Air-Conditioners:
-Drilling holes into a brick wall to take out the pipes (excluding core cutting)
-Fixing a hole sleeve & cap
-Fixing & connecting indoor and outdoor units with copper pipes & installation of drainage pipes using the standard kit provided by the manufacturer
-Installation of separately purchased power plug, MCB & power stabilizer
-Temperature & gas pressure testing
-Demo of the product
Window Air-Conditioners:
-Installing the AC as per the specifications/requirements
-Connection to separately purchased stabilizer/power point in the range of the power cord provided by the manufacturer
-Demo of the product
Note:
Charges are to be paid directly to the Brand/Jeeves authorized technician at the time of installation.
Technician Visit Details
Authorized Service Engineer will do the following:
-Repair or change the defective part
-Provide replacement to the customer in case part or product is not repairable (only after replacement request approved)
Uninstallation Details
For returns, the uninstallation process includes:
- Authorized service engineer visiting the customer's location
- Uninstalling the product
- Packing the item
- Picking up the product
Performance Features
Panel Display
No
Indoor Temperature Indicator
Yes
Turbo Mode
Yes
Other Performance Features
Turbo Mode: Powerful Mode
Air Flow & Filter Features
Air Circulation
636 CFM
Auto Air Swing
Yes
Air Flow Direction
4-way Direction
Anti-bacteria Filter
No
Dust Filter
No
Active Carbon Filter
No
Deodorizing Filter
No
Other Filter Features
PM 2.5 Twin Filter
Air Swing
Vertical, Horizontal
General
In The Box
1 Indoor Unit1 Remote Controller2 AAA BatteriesSet Installation Plates and Screws1 Outdoor UnitPiping KitUser ManualWarranty Card
Brand
Panasonic
Model Name
CS/CU-KC15SKY5R
Type
Split
Capacity in Tons
1.2 Ton
BEE Star Rating
5 Star BEE Rating
Color
White
Cooling and Heating
No
Cooling Capacity
4050 W
Compressor
Rotary
Dehumidification
Yes
Remote Control
Yes
Refrigerant
R-22
Operating Modes
Auto, Cool, Fan, Dry, Powerful, Sleep
Technology Used
Fix Speed AC Based on VCRS

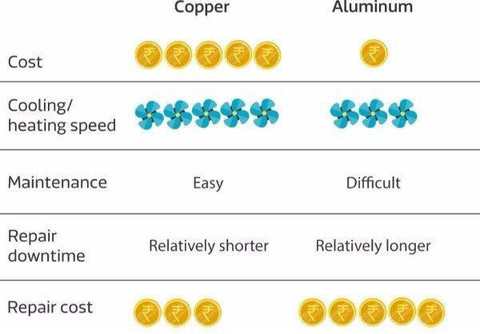

Condenser Coil
Copper
Air Conditioner Technology
Fixed Speed
Wi-Fi Connectivity
No
Dimensions
Indoor W x H x D
87 cm x 29 cm x 23.5 cm
Indoor Unit Weight
12 kg
Outdoor W x H x D
88.5 cm x 51.1 cm x 37.7 cm
Outdoor Unit Weight
35 kg
Disclaimer
Disclaimer
The manufacturing date can be earlier than the model year.
Power Features
Power Requirement
AC 220 - 240 V, 50 Hz
Annual Electricity Consumption
0 Units
Operating Current
5.1 A
Ambient Temperature
46 degree C
Convenience Features
Auto Restart
Yes
Timer
Yes
Child Lock
No
Quiet Mode
No
Sleep Mode
Yes
Memory Feature
Yes
Self Diagnosis
No
Additional Features
Piping Connection - Liquid Side: 0.63 cm, Gas Side: 1.27 cm Rating Conditions - Inside Air Temperature (Cooling: 27DegreeC DB / 19DegreeC WB), Outside Air Temperature (Cooling: 35DegreeC DB / 24DegreeC WB)Sound Power Level (High/Low): 49/42 dB Moisture Removal Volume (L/H): 3.7
See more
1.2 Tons Cooling AC White CS/CU-KC15SKY5R
See more
Warranty Summary
1 Year on Product and 5 Years on the Compressor
Covered in Warranty
Only the compressor repair will be provided free of cost and when necessary.
Not Covered in Warranty
Defects due to cause beyond control like lightning, abnormal voltage, acts of god, while in transit to service centers or purchaser's residence.
Generic Name
Air Conditioners
Country of Origin
India
Name and address of the Manufacturer
Panasonic India Pvt. Ltd., Unit-D, Industrial Plot No.1, Village: Bid Dadri, District: Jhajjar - 124103, Haryana, IndiaPanasonic App. AC Malaysia SDN BHD Lot 2 Persiaran TenkuAmpuan Section 21 Shah Alam Indl. Site 40300 Shah Alam, Selangor
Name and address of the Packer
Panasonic India Pvt. Ltd., Unit-D, Industrial Plot No.1, Village: Bid Dadri, District: Jhajjar - 124103, Haryana, India
