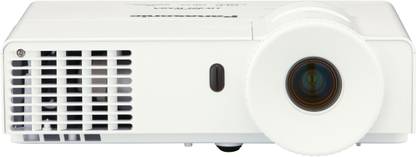

Panasonic 3200 lm DLP Corded Portable Projector (White)

Price: Not Available

Currently Unavailable

1 Year On Projector and for Lamp 1000 HoursKnow More

Highlights

Specifications

General

Sales Package	Projector, Power Cable, Users Guide, Remote Control
Model Number	PT-LX321U
Macintosh Compatibility	No
Color	White
Signal Type	PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Power Requirement	50/60 Hz, 100 - 240 V
Lamp Life	Up to 8500 Hours
Zoom Type	1.1x Manual Zoom
Lamp Type	190 W UHM
Focus Mechanism	Manual
Other Lens Features	F 2.5 - 2.67
Remote Control	Yes
Mountable	Yes
Power Consumption	245 W
Brightness	3200 lm

Product Details

Number of Speakers	1
Speaker Output	8 W
Audio Type	Mono
Noise Level	35 dB
Contrast Ratio	7500:01:00
Aspect Ratio	4:03
Throw Ratio	1.55 - 1.7:1
HDMI Port	Yes
VGA Port	Yes
Audio Input/Output	Audio 1 In: M3 x 1 (L-R x 1) (For Computer), M3 x 1 (L-R x 1) (For Video), Audio Out: M3 x 1 (L-R x 1) For Output (Variable)
Other Connectivity Features	Computer 2 In: D-sub HD 15-pin (Female) x 1 [RGB / YPB (CB) / PR (CR) x 1], Computer 1 In: D-sub HD 15-pin (Female) x 1 [RGB / YPB (CB) / PR (CR) x 1], Video In: Pin Jack x 1, Serial In: D-sub 9-pin (Female) x 1 for External Control (RS-232C Compliant), Monitor Out: D-sub HD 15-pin (Female) x 1 (The Signal Selected from Computer Input 1/2 is Output), Audio Signal: Linear PCM (Sampling Frequency: 48 kHz, 44.1 kHz, 32 kHz), LAN: RJ-45 x 1 (Network Connection, 100 BASE-TX / 10 BASE-T, Compliant with PJLink (Class 1)), HDMI 19-pin x 1 (Deep Color, Compatible with HDCP)
Other Performance Features	Lamp Control System Automatically Adjusts the Lamp Output in Accordance with the Brightness of the Projected Image, Reducing Power Consumption of the Unit by Upto 70%

Other Details

Vertical Scan Rate	0.024 - 0.0851 kHz
Uniformity	80 %
Battery Type	Li-ion
Keystone Correction	40 Vertical (Manual)
Other Audio Features	7 x 4 cm Oval Shape x 1
Other Power Features	Power Consumption: 0.5 W (Standby Mode Set to ECO), 6 W (Standby Mode Set to Normal)
Other Features	Installation: Ceiling / Floor, Front / Rear, Cabinet Materials: Molded Plastic (PC+ABS), Lamp Replacement Cycle: 4500 hours (Normal), 6000 hours (Eco), Scanning Frequency - HDMI: fH: 15 - 91.1 kHz, fV: 24 - 85.1 Hz, Dot Clock: 25 - 162 MHz, DLP Chip - Panel Size: 14 mm, Wired LAN Terminal Allows Crestron's Application Software, Operating Humidity: 20 - 80 % (No Condensation), Scanning Frequency - RGB (Analog): fH: 15 - 91.1 kHz, fV: 24 - 85.1 Hz, Dot Clock: 162 MHz or Lower, Operation Noise: 29 dB (Lamp Power: Eco), Operating Temperature: 5°C - 40°C (Less than 750 m Above Sea Level), 5°C - 35°C (Between 750 and 1500 m Above Sea Level), 5°C - 30°C (Between 1500 and 3000 m Above Sea Level), YPBPR (YCBCR): fH: 15.75 kHz, fV: 60 Hz [480i (525i)], fH: 31.50 kHz, fV: 60 Hz [480p (525p)], fH: 45.00 kHz, fV: 60 Hz [720 (750) / 60p], fH: 33.75 kHz, fV: 60 Hz [1080 (1125) / 60i], fH: 27.00 kHz, fV: 24 Hz [1080 (1125) / 24p], fH: 56.25 kHz, fV: 50 Hz [1080 (1125) / 50p], fH: 15.63 kHz, fV: 50 Hz [576i (625i)], fH: 31.25 kHz, fV: 50 Hz [576p (625p)], fH: 37.50 kHz, fV: 50 Hz [720 (750) / 50p], fH: 28.13 kHz, fV: 50 Hz [1080 (1125) / 50i], fH: 67.50 kHz, fV: 60 Hz [1080 (1125) / 60p], Optical Axis Shift: 10:-1.5

Dimensions

Warranty

Warranty Summary	1 Year On Projector and for Lamp 1000 Hours
Domestic Warranty	1 Year
