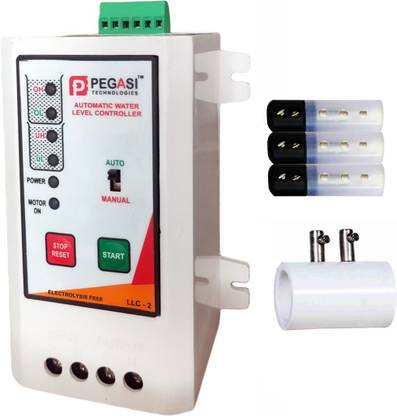

PEGASI Water Level Controller and T Sensor for direct municipal water supply to tank Wired Sensor Security System

• High quality ABS plastic Enclosure. • Working: This model automatically switch ON and switch OFF Motor. • When water level of overhead tank becomes low means water get down from middle sensor and water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. When the water level reaches to the higher level, the motor automatically gets switched off. • AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY. • This model have dry run protection so it only start motor if water present in underground tank or sump. • Suitable for 0.1 HP to 5.0 HP Motor, Protect motor from dries running. • Motor ON OFF LED indication provided. • Water Level indication provided for both tank. • Supply voltage : 220-270 V AC, • Sensing element: carbon sensor, it is free from oxidation, long life. Any conducting wire can be use for sensor. • Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. No additional wiring requires operating motor manually. • Also Suitable for MCB Starter panel and submersible motor, see diagram above for connection. • High quality ABS Plastic enclosure provided. • Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life. If user want to start their motor, only if government water come to the sump, then they need to put this sensor at water supply line. so when government water comes, T - sensor (Line sensor) will sense the water and send command to the water level controller to start the motor. If water not comes motor not start.
