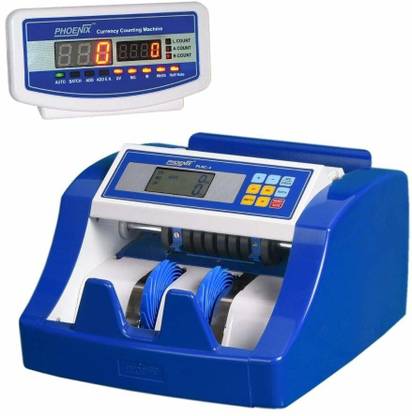

PHOENIX PLNC 4 Fully Automatic with Extra Display and Fake note detector Note Counting Machine (Counting Speed - 1000 notes/min)

Price: Not Available

Currently Unavailable

Warranty

1 Year Warranty at company service center

Highlights

Detection Technology: UV Sensor, IR Sensor, Magnetic Sensor
Detects Fake Note
Detects Duplicate Note
Detects Cut Note
Detects Chain Note

Description

9-key keyboard makes it easy to operate::Automatically detects faulty/counterfeit notes using Ultraviolet, Magnetic, Infrared sensors. Width variation of notes is detected by Optical sensor::Capable of Double Note detection::Sensitivity of Ultraviolet, Magnetic, Infra-red and Optical sensors are settable::Clear and crisp LCD display with backlight and clear visibility from every angle::Modes of operation and errors detected are displayed on the LCD screen::It detects various parameters for authenticity of notes and indicates various errors observed::Modes of operation : Auto Start, Add Batch, Bundle Check::Machine stops working beyond specific Low/High Voltages, eliminating counting errors and probable damages::Thermal Protection circuit for induction motor::Suitable for Indian currency notes::Extra LED type display containing all the features of main display panel.

Specifications

Warranty

Warranty Summary	1 Year Warranty at company service center
Covered in Warranty	functioning of machine
Not Covered in Warranty	Physical damage
Warranty Service Type	Sending product to company through courier which cost near 150 rs. OR by phone call Guidance
Domestic Warranty	1 Year

Safety And Security Features

Fake Note Detection	Yes
Duplicate Note Detection	Yes
Cut Note Detection	Yes
Chain Note Detection	Yes
Other Safety and Security Features	Automatically detects faulty/counterfeit notes using Ultraviolet, Magnetic, Infrared sensors. Width variation of notes is detected by Optical sensor., Machine stops working beyond specific Low/High Voltages, eliminating counting errors and probable damages., Capable of Double Note detection., Manual Mode is also there, Very Easy to operate

In The Box

Sales Package

1 Note counting machine:

General

Brand	PHOENIX
Model Name	PLNC 4 Fully Automatic with Extra Display and Fake note detector
Counting Speed	1000 notes/min
Detection Technology	UV Sensor, IR Sensor, Magnetic Sensor
Acceptable Denominations	100, 200, 500, 1000, 2000
Suitable Currency	INR
Adjustable Speed	Yes
Stacker Capacity	200 Notes
Hopper Capacity	200 Notes

Additional Features

Batch Counting	Yes
Preset	Yes
Note Duster Provided	Yes
Portable	Yes
Self Sorting	Yes
Denomination Breakup Provided	No
Printer Attached	No
Certification	ISO
Other Features	Modes of operation : Auto Start, Add Batch, Bundle Check., 9-key keyboard makes it easy to operate., Thermal Protection circuit for induction motor.
Hopper Capacity	200 Notes
Stacker Capacity	200 Notes
Key Features	Fully Automatic, 9-key keyboard makes it easy to operate., Extra Display FREE, Automatically detects faulty/counterfeit notes using Ultraviolet, Magnetic, Infrared sensors., Width variation of notes is detected by Optical sensor., Capable of Double Note detection., Sensitivity of Ultraviolet, Magnetic, Infra-red and Optical sensors are settable., Clear and crisp LCD display with backlight and clear visibility from every angle., It detects various parameters for authenticity of notes and indicates various errors observed., Auto Start, Add Batch, Bundle Check., BEST FEATURE- Machine stops working beyond specific Low/High Voltages, eliminating counting errors and probable damages., Thermal Protection circuit for induction motor.

Dimensions

Height	8 inch
Depth	10.07 inch
Weight	5.4 kg

Display Features

Display Type	LCD
Touch Screen Interface	No
Maximum Counter Display	2
Maximum Batch Count	200
Other Display Features	Display flashes Red light when counterfeit note is observed

Power Features

Power Source	230 V AC +/-10%, 50Hz +/-2%.
Power Consumption	40 W
Power Requirement	220
Other Power Features	Machine stops working beyond specific Low/High Voltages, eliminating counting errors and probable damages.
