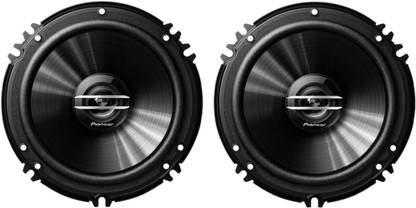

TS-G1620S-2
A pair of light weight 16 cm car speakers, known for their high frequency sounds.
2-way, 16cm speakers which will fit perfectly into your car doors with our flexible installation design. For sound, we use a new MICA reinforced pulp cone along with an OFC short ring to eliminate any distortion for an excellent musical experience.
P.F.S.S. spider
Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.
Impactful Bass
Its unique design with long stroke space, powerful motor and long stroke suspension helps it in providing powerful bass and strong sound.
High rigidity PP Cone
High rigidity PP Cone realize well sound balance and reproduce impactful bass & clear vocal.
Shallow basket
Light weight design with lesser mounting depth for easy installation in your car
OFC short ring
A copper short ring is introduced above yoke pole for
reducing distortion and increased high-frequency range
SYSTEM: Coax. 2-way
Sound pressure level: 89dB?±1.5?B?
FREQUENCY RANGE?: 31Hz?? 18KHz???20?B?
Max Wattage: 300W
Nominal Wattage: 40W
SIZE: 6-1/2" (160mm), CONE
Impedence: 4 Ohms
Woofer
CONE MATERIAL: IMPP COMPOSITE CONE
Color: BLACK (HAIR LINE)
Surround material: RUBBER COATED CLOTH SURROUND
Tweeter
Type: PIEZOELECTRIC Balanced Dome
DIAPHRAGM MATERIAL: PET
color: BLACK
Installation information
Dimensions (Dia x Depth): ? 157.8 X 60.7 (mm)
Weight: 0.52kg (1 lbs 2 oz)
Mounting depth: 42.2 mm
Cutout hole: 128 mm
