Baiai 2.4.8 Electronic Components Electronic Hobby Kit

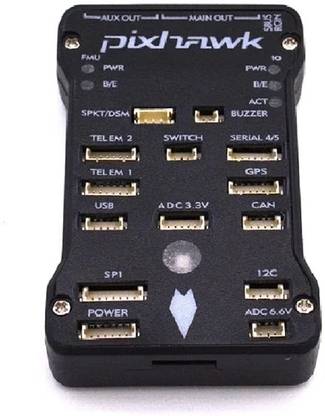

Pixhawk Supports 8 RC channel with 4 serial port. Various user interfaces are available for programing, reviewing logs, even some apps for smartphones & tablets. It detects and configures all its peripherals automatically The benefits of the Pixhawk system include a Unix/Linux-like programming environment, completely new autopilot functions. Sophisticated scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes. Features of Pixhawk 2.4.8: 1. The advanced 32-bit ARM CortexM4 high-performance processors; can run NuttX RTOS real-time operating system. 2. 14 PWM / servo output. 3. Bus interface (UART, I2C, SPI, CAN). 4. The integrated backup power and backup controller fails; the primary controller fails over to the backup control is safe. 5. Provide automatic and manual modes. 6. Provide redundant power input and failover 7. Micro SD card to record flight data. Specifications: Processor: 1. 32bit STM32F427 Cortex M4 core with FPU. 2. 32-bit STM32F103 failsafe co-processor. 3. 168 MHz. 4. 128 KB RAM. 5. 2 MB Flash. Sensors: 1. ST Micro L3GD20H 16 bit gyroscope. 2. ST Micro X4HBA 303H 14-bit accelerometer/magnetometer. 3. Invensense MPU 6000 3-axis accelerometer/gyroscope. 4. MEAS MS5607 barometer. Interfaces: 1. 5x UART (serial ports), one high-power capable, 2x with HW flow control. 2. 2x CAN (one with an internal 3.3V transceiver, one on expansion connector). 3. Spektrum DSM / DSM2 Satellite compatible input. 4. Futaba S.BUS compatible I/O. 5. PPM sum signal input. 6. RSSI (PWM or voltage) input. 7. I2C. 8. SPI. 9. 3.3 and 6.6V ADC inputs. 10. Internal micro USB port and external micro USB port extension. Package Includes : 1 x Pixhawk 2.4.8 32 Bit Autopilot PX4 Drone Flight Controller. 3 x Connecting Cables. 1 x Buzzer Module.
