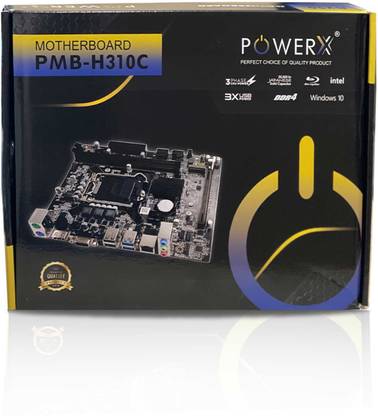

powerx H310 DDR4 LGA1151Socket Micro-ATX Intel H310C Chipset DDR4 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

3 Years Manufacturer

Highlights

Suitable For Desktop
Intel H310C
Data Rate DDR4
Maximum RAM Capacity 32 GB
Form Factor: Micro-ATX

Description

CPU Support LGA 1151 Socket 13/15/17 series CPU Chipset Intel H310C/B250 Chipset Memory 2*288-pin DDR4 slots Memory up to 32GB Support dual-channel DDR4 2133/2400/2666 MHz memory BIOS EFI BIOS I/O Interface 1 x PS/2 port 1 x VGA port 1 x HDMI port 2 x USB 2.0, compatible with USB 1.1 2 x USB 3.0 port 1 x RJ45 port 1 x Audio port (Line In / Line Out / MIC In) Onboard Interface 1 x 24-pin ATX power connector 1 x 4-pin ATX 12V power connector 1 x USB connectors, can support 2*USB 2.0 1 x USB connectors, can support 2*USB 3.0 1 x F_AUDIO connector 1 x F_PANEL connector 1 x SPEAKER connector 2 x FAN connectors 3 x Serial ATA connection ports Integrated Sound with 6-channel HD Audio Codec onboard provides front audio interface; provides front stereo mic interface Integrated LAN with 10/100/1000 Mbps LAN onboard (Optional) Expansion Slot 1 x PCI Express x 16 slot 1 x M.2 slot Dimension Micro-ATX (17*19.6cm)

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	2
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	2
RJ-45 Ethernet Jacks	1
PS/2	2

In The Box

Sales Package

Motherboard 1, SATA Cable 1, User Manual

General Features

Support CDs	Yes
OS Support	Windows 7, Windows 8.1, Windows 10
BIOS	EFI BIOS

Warranty

Domestic Warranty	3 Year
International Warranty	3 Year
Warranty Summary	3 Years Manufacturer
Covered in Warranty	Not Working, No Display
Not Covered in Warranty	Burnt, Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	2 Slots
Memory Configuration	32 GB DDR4 UDIMM DDR4 2666
Memory Frequency	2666 MHz
ECC Support	Non-ECC
Buffered Memory	No

Dimensions

Dimensions	17 x 20 x 6.8 mm
Weight	0.5 g

Essentials

Form Factor	Micro-ATX
Socket Type	LGA1151
Compatible Processors	Intel Core i3/i5/i7 8th gen
FSB	2666 MHz
Chipset	Intel H310C
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Intel Integrated
External Graphics Card Support	Yes

Expansion Slots

PCI Slots	1
PCIe x16 Slots, Generation	1

General

Brand	powerx
Series	Micro ATX
Model ID	H310 DDR4
Designed For	Desktop
Color	Intel Core i3/i5/i7 8th gen supported
Capacity	32 GB

Connectivity

Ethernet Card	10/100
Ethernet Features	RJ45

Audio

Audio Codec	HD Audio Codec onboard
Audio Channels	6

Internal I/o Headers

SATA 3 Gb/s Headers	4
ATX Power Connectors	1 (4 Pin EATX)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Audio port (Line In / Line Out / MIC In)
VGA/Dsub Connectors	1
