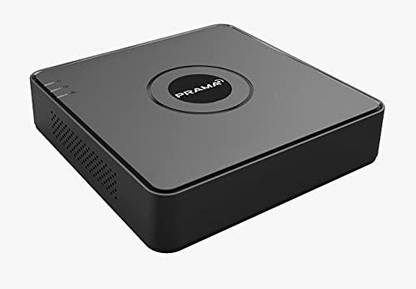

PRAMA DVR-02 Camera Matte Box

Video/Audio input Video compression H.264+/H.264 Analog video input 8-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection HD-TVI input 1080p25, 1080p30, 720p25, 720p30 AHD input 1080p25, 1080p30, 720p25, 720p30 HDCVI input 1080p25, 1080p30, 720p25, 720p30 CVBS input Support IP video input 2-ch(up to 10-ch) Up to 1.3MP resolution Audio compression G.711u Audio input/Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 K?) Video/Audio output HDMI/VGA output 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Encoding resolution When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF Frame rate “Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N) ” Video bit rate 32 Kbps to 4 Mbps Audio output 1-ch, RCA (Linear, 1 K?) Audio bit rate 64 Kbps Dual stream Support Stream type Video, Video & Audio Synchronous playback 8-ch Network management Remote connections 128 Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS Hard disk SATA 1 SATA interface Capacity Up to 6 TB capacity for each disk External interface Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface USB interface Rear panel: 2 × USB 2.0 General Power supply 12 VDC Consumption (without HDD) ? 12 W Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF) Working humidity 10% to 90% Dimensions(W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) Weight(without HDD) ? 0.8 kg (1.8 lb)
